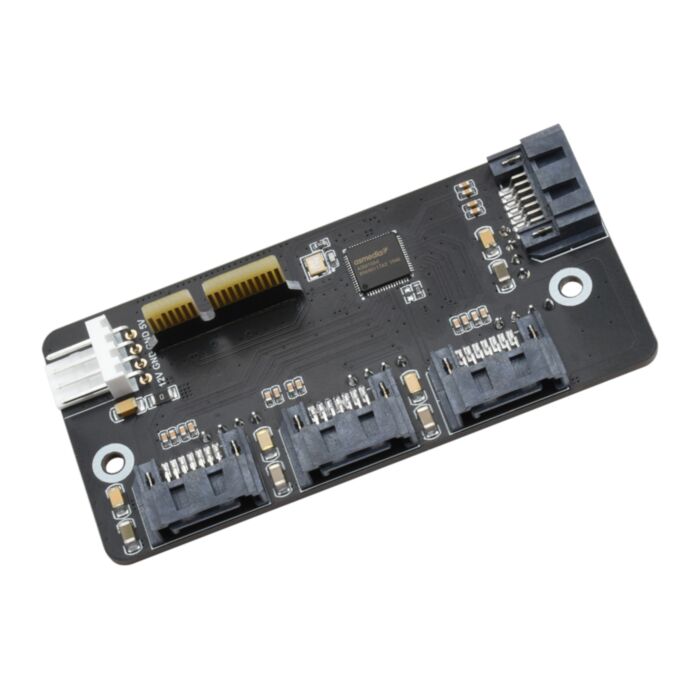

PCIe TO 4-Ch SATA 3.0 Expander, 6Gpbs High-speed SATA Interface, Supports CM4

SKU: WS-22247 Brand: Waveshare

PCIe TO 4-Ch SATA 3.0 Expander, 6Gpbs High-speed SATA Interface, Supports CM4...

$36.50 AUD, inc GST

$33.18 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 03 and Dec 06

Quantity Discounts:

10-25 $32.18 (exc GST)
25+ $31.52 (exc GST)

Experiment with more hard drives on your Compute Module 4 IO board, this SATA controller allows for 4 SATA drives to be added via the PCIe slot!

Features

Onboard SATA host controller (AHCI) with upstream PCle Gen3 x1 and downstream four SATA Gen3 ports. It's a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, it can enable users to build up various high-speed IO systems, including server, high-capacity system storage or surveillance platforms

Supports 1-ch PCI Express
Four power-saving modes of L0s/L1/L23/L3
Support L1 sub-state deep power saving mode
Supports SRIS, AER, LTR
Supports SATA LED
Supports NCQ & AHCI SPEC 1.4
Four SATA3.0 (6Gbps) ports
Supports the switching based on the port multiplier commands
Supports SATA Partial/Dormancy power management
Power Header For External 5V/12V Input

Dimensions

Wiki

Includes:

1x PCIe-TO-SATA-4P
4x SATA Adapter Cable
Mounting hardware
