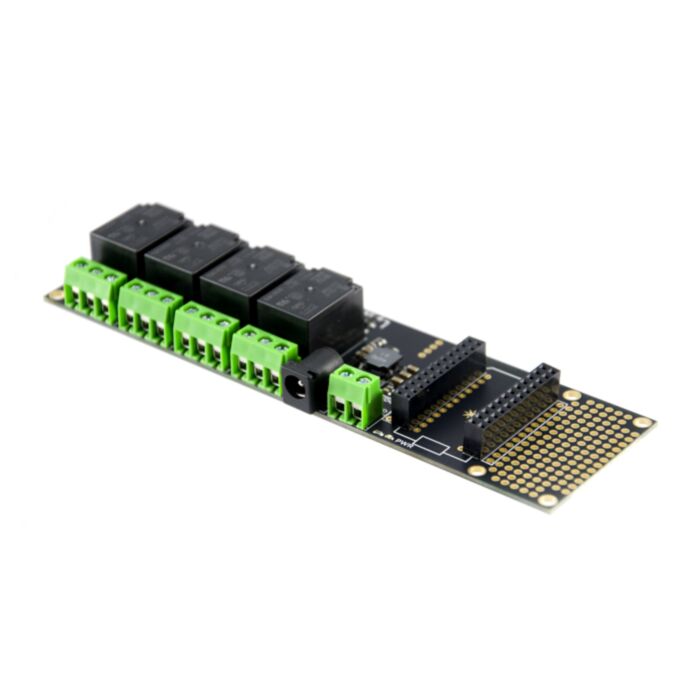

Particle Relay Shield for Photon

SKU: CE00287

$50.00 AUD, inc GST
$45.45 AUD, exc GST

More Views

Particle Relay Shield for Photon
50 AUD

SKU: CE00287

$50.00 AUD, inc GST
$45.45 AUD, exc GST
2 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Wed, 25th of Oct

The Relay Shield allows you to control any normal outlet or high voltage product from anywhere. The shield comes with four relays that are rated at a max of 220V @10Amp allowing you to control electric appliances rated at under 2000 Watts.

Note that you *will* need a DC adapter to power the relays!

Specs:

  • Operating voltage: 7 to 15V DC
  • Current consumption: 150mA min to 290mA (at 9V DC)
  • Relay Max Voltage: 250V AC
  • Relay Max Current: 10Amp at 125V AC
  • Compatible with both the Core and the Photon.

Don't mess around with 240VAC unless you are qualified to do so.

This product is listed in:

Documentation and Resources:
  • IoT Plant Monitor
  • So, my wife wanted to have some small plants in the house. I didn’t, so we compromised, and got some plants. The only thing is that neither of us remembers to water them, so I wanted to build a sensor array to monitor the moisture content of the soil, and notify us when they needed watering. We’ve got 3 plants, all fairly close to each other, and I wanted to create an IoT project so that it could send an email notifi...
  • IOT Shed
  • The driver behind this project is to allow the remote control of some of the equipment in my shed. I have a CNC router/laser cutter that uses my compressor and dust extractor whilst it is running, and well whats the point in having a computer comtrolled machine if you have to hang around and turn the other auxiliary bits on and off?!? There are a million ways to skin a cat, and the same is true about this project. However after ...
  • IoT Mailbox
  • Getting letters and parcels is awesome, what’s not so awesome though is when you miss the postman and you don’t know if that important bit of mail arrived or not. Such a frustrating, yet mundane problem can be solved by creating an Internet of Things mailbox!...
  • IoT House
  • These days we can do just about anything on our phone, we can control so many aspects of our lives using the technology in our pocket, but the most mundane aspects of our lives; opening the garage door, blindly reaching for the light switch in the dark, opening the front door when we get home, still relies on manual interaction. So I created the Particle IoT House, which contains servo motors to open and close the front and gara...

Product Comments


Customer Reviews

  1. Review by Phoenix verified purchaser
    Rating
    100

    Awesome piece of kit, and super fun to work with. Particle has provided some libraries but take the advice of Core and avoid them... they work great but overcomplicate things. A simple pinMode(D#, Output) and sending that pin high will reward you with that satisfying EMR click. (Posted on 2/08/2017)

  2. Review by Chris verified purchaser
    Rating
    100

    Great for IoT lighting projects! (Posted on 18/04/2017)
