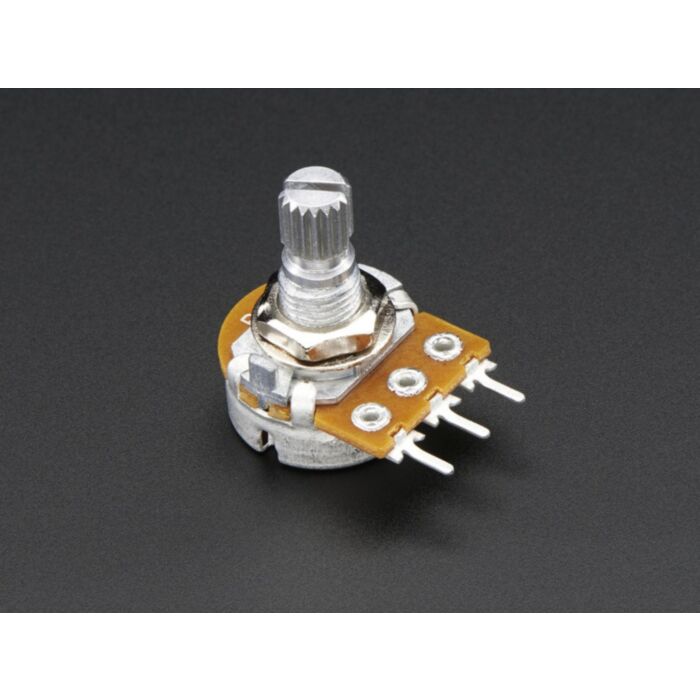

Panel Mount 1K potentiometer (Breadboard Friendly) - 1K Linear

Rating:

100% of 100

SKU: ADA1789 Brand: Adafruit

This 1K potentiometer is a two-in-one, good in a breadboard or with a panel. Its a fairly standard linear taper 1K ohm potentiometer, with a grippy shaft. Its smooth...

$2.40 AUD, inc GST

$2.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $2.09 (exc GST)
25+ $2.03 (exc GST)

Recommended Essentials:

Rotary Potentiometer Knob White

$1.80

This 1K potentiometer is a two-in-one, good in a breadboard or with a panel. Its a fairly standard linear taper 1K ohm potentiometer, with a grippy shaft. Its smooth and easy to turn, but not so loose that it will shift on its own. Adafruit like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical Details

1K ohm potentiometer, linear taper
100,000 Cycle Life
Power: 0.2W
Rotational travel: 300 °
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in

Dimensions:

Body: 16mm
Height: 24mm
Weight: 6g

This product is listed in:

Components & Parts>Potentiometers>Rotary
