Panel Mount 10K Dual Linear Potentiometer w/ On-Off Switch - 10K Dual Linear w/ Switch

SKU: ADA3393

$2.93 AUD, inc GST
$2.66 AUD, exc GST
Panel Mount 10K Dual Linear Potentiometer w/ On-Off Switch - 10K Dual Linear w/ Switch
2.9265 AUD

SKU: ADA3393

$2.93 AUD, inc GST
$2.66 AUD, exc GST
In stock, with a short lead time. 115 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 1st of Nov with Express Post within Australia.

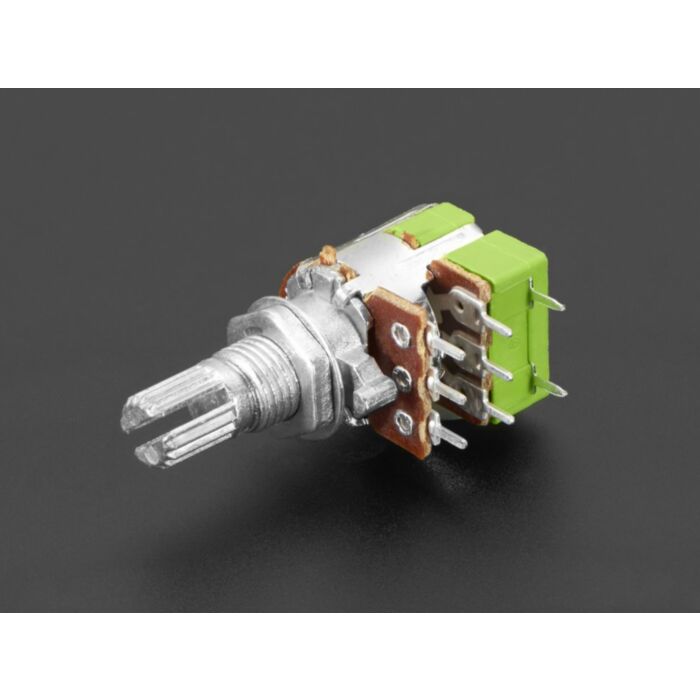

This Panel Mount 10K Dual Linear Potentiometer w/ On-Off Switch is a two-in-one, you get a dual-ganged potentiometer and an on-off switch. For the potentiometer-half, you've got a dual standard linear-taper 10Kohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. It also comes equipped with an on/off switch at the beginning of the shaft's rotation.

Unlike many of Adafruit's other potentiometers, this one is not breadboard-friendly. The pins are about 0.15" apart, and the rows are close together so you'd short the switch to the potentiometer. Thus, we suggest soldering wires to the pins as necessary, or designing a custom PCB.

Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut. Adafruit have got plenty of matching T18-splined knobs that you can pair up

Technical Details

  • 10K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • 16mm Body
  • Rotational travel: 300°
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in

Product Dimensions: 32.0mm x 20.0mm x 14.0mm / 1.3" x 0.8" x 0.6"

Product Weight: 7.6g / 0.3oz
