Oscilloscope Probe 100MHz

SKU: ADA1528

$25.00 AUD, inc GST
$22.73 AUD, exc GST

More Views

Oscilloscope Probe 100MHz
25 AUD

SKU: ADA1528

$25.00 AUD, inc GST
$22.73 AUD, exc GST

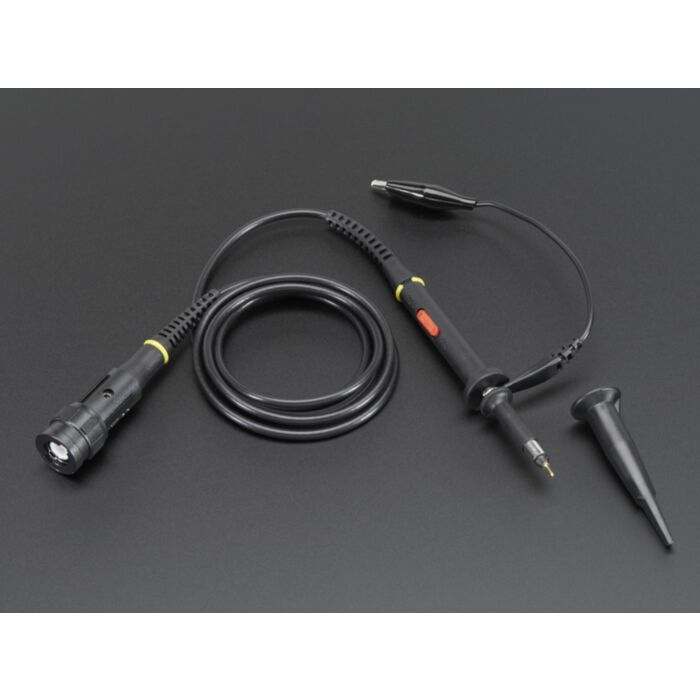

Poke and prod your electronics with a new 'scope probe. This is a classic probe, good quality and has a nice strong spring-clip and grounding clip. Good for up to 100MHz signals, with a standard oscilloscope BNC connector. Comes as shown, the ring color on the body of the probe/connector may vary.

Technical Details

  • 1x or 10x attenuation (slide switch on body)
  • Input resistance: 1Mohm (1x) or 10Mohm (10x)
  • Input capacitance: 85-120pF (1x) or 18-22pF (10x)
  • Compensation cap range: 10-30pF
  • Bandwidth: DC-6MHz (1x) or DC-100MHz (10x)
  • Input voltage: 300VDC/AC Vpp (1x) or 600VDC/AC Vpp (10x)
  • Operating temp: -15 degree C to 75 degree C
  • Humidity: Under 85% RH
  • Wire length from connector to probe: 0.97m / 38.5"
Documentation and Resources:
