Onion ADC Expansion

SKU: CE05449 Brand: Onion Omega

Retired Product

This product has been replaced by: Single Board Computer
This product is no longer available. This page is only for reference.

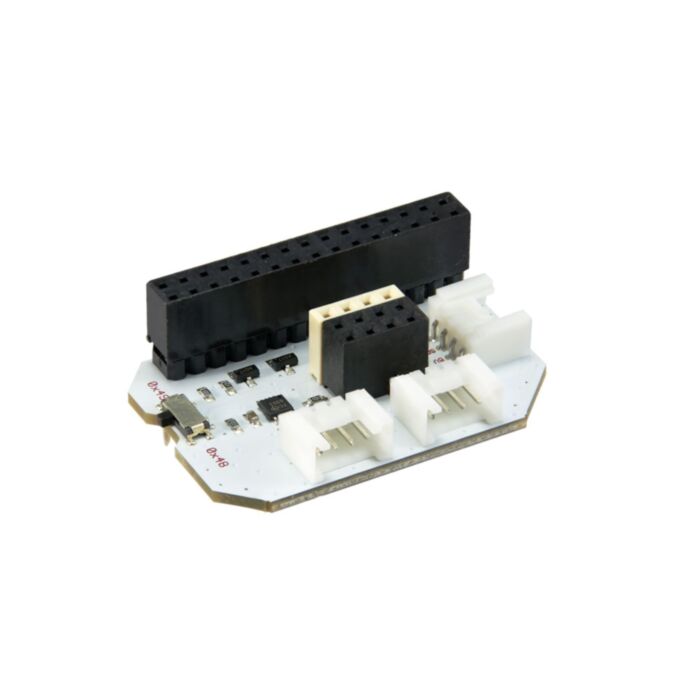

The Omega ADC Expansion board will bring a new world – the analog world – directly to your Omega2 modules. This TI ADS115 based 4-channel 16-bit Delta-Sigma analog to digital expansion board plugs into the Omega Expansion, Power, or Arduino Docks thru the 30-pin expansion header. It offers not only 4 analog signal connections (each with its own power and ground), but also 3 Grove compatible expansion connectors as well. We’ve been impressed with the range of sensors, actuators, and controllers available in the Grove family, and so we are including 2 analog and 1 digital Grove connectors right on the ADC Expansion.

And in addition, the ADC Expansions are stackable, and each Omega2/Dock will support up to 2 stacked ADC Expansion boards giving you 8 channels in total. The tiny switch we included on the side of the ADC expansion lets you select the I2C address of each ADC between 0x48 and 0x49.
