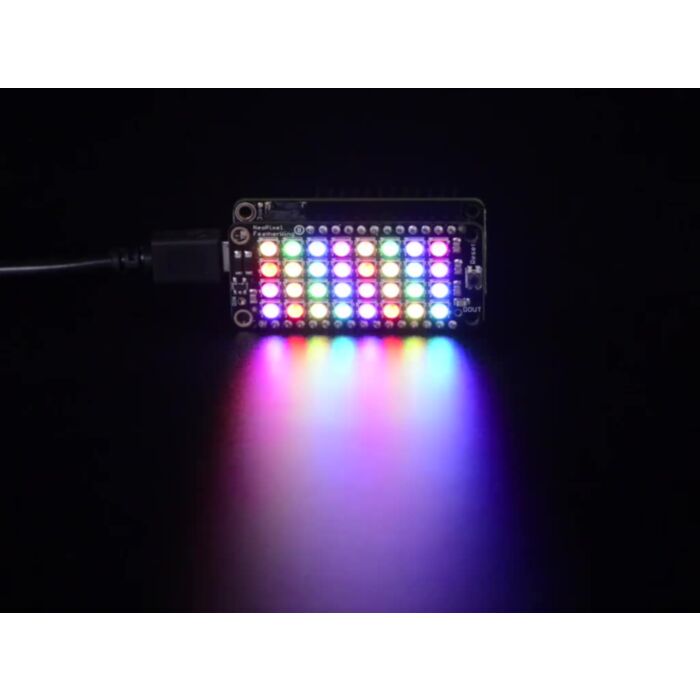

NeoPixel FeatherWing - 4x8 RGB LED Add-on For All Feather Boards

Rating:

100% of 100

SKU: ADA2945 Brand: Adafruit

A Feather board without ambition is a Feather board without FeatherWings! This is the NeoPixel FeatherWing, a 4x8 RGB LED Add-on For All Feather Boards! Using Adafruit's...

$29.35 AUD, inc GST

$26.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 07 and Jan 13

Quantity Discounts:

10-25 $25.62 (exc GST)
25+ $24.82 (exc GST)

A Feather board without ambition is a Feather board without FeatherWings! This is the NeoPixel FeatherWing, a 4x8 RGB LED Add-on For All Feather Boards! Using our Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top or bottom of your Feather board and make your Feather board strut like a peacock at a rave.

Put on your sunglasses before staring into these 32 configurable eye-blistering RGB LEDs. Arranged in a 4x8 matrix, each pixel is individually addressable. Only one pin is required to control all the LEDs. On the bottom Adafruit have jumpers for the DIN line to any of the I/O pins on a Feather. You can cut the default jumper trace and use any pin you like. (In particular, the default pin for Feather Huzzah ESP8266 must be moved, try pin #15!)

To make it easy to start, the LEDs are by default powered from either the USB power line or Battery power line, whichever is higher. Two Schottky diodes are used to switch between the two. This power arrangement is able to handle 1 Amp of constant current draw and maybe 2A peak, so not a good way to make a flashlight. It's better for colorful effects.

A level-up shifter converts the 3.3V logic of the Feather to the power line voltage. If, say, you need MORE blinky, you can chain these together. For the second Wing, connect the DIN connection to the first Wing's DOUT. Also connect a ground pin together and power with an independant 5V supply to keep from loading the power supply too much.

Check out Adafruit's tutorial for pinouts, usage, and more!

Adafruit's detailed NeoPixel Uberguide has everything you need to use NeoPixels in any shape and size. Including ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK (all versions)

Check out Adafruit's range of Feather boards here.

Technical Details

50.8mm x 22.9mm x 2.7mm / 2" x 0.9" x 0.1"
Weight: 5.2g
Schematic, EagleCAD PCB files, and Fritzing available in the product tutorial

This product is listed in:

Other Favourites>Feather
Other Favourites>Feather>Feather Wings
