Motoron M3H550 Triple Motor Controller Kit for Raspberry Pi

SKU: POLOLU-5072 Brand: Pololu
The Motoron M3H550 Triple Motor Controller makes it easy to control DC motors from a Raspberry Pi (Model B+ or newer) through an I²C interface. Each...
$46.10 AUD, inc GST
$41.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 30 and Jun 03

Quantity Discounts:

  • 10-25 $40.65 (exc GST)
  • 25+ $39.82 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Motoron M3H550 add-on board makes it easy to control up to three bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer). It operates from 1.8 V to 22 V and can deliver continuous output currents up to 1.7 A per motor. The M3H550 is designed to stack on top of a Raspberry Pi (Model B+ or newer), similar to a HAT (Hardware Attached on Top), and multiple Motoron controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of Pololu's motor drivers and motor driver expansion boards for Raspberry Pi, the Motoron does not require any PWM outputs on your Raspberry Pi. Instead, the Raspberry Pi communicates with the Motoron using I²C, so only two GPIO pins are needed regardless of how many Motorons you connect.

Three M3H550 versions are available to provide different options for the through-hole connectors:

For applications using an Arduino or compatible controller, consider the Motoron M3S550 instead (also available with different connector options).

Details for item #5072

Motoron M3H550 Triple Motor Controller Kit for Raspberry Pi.

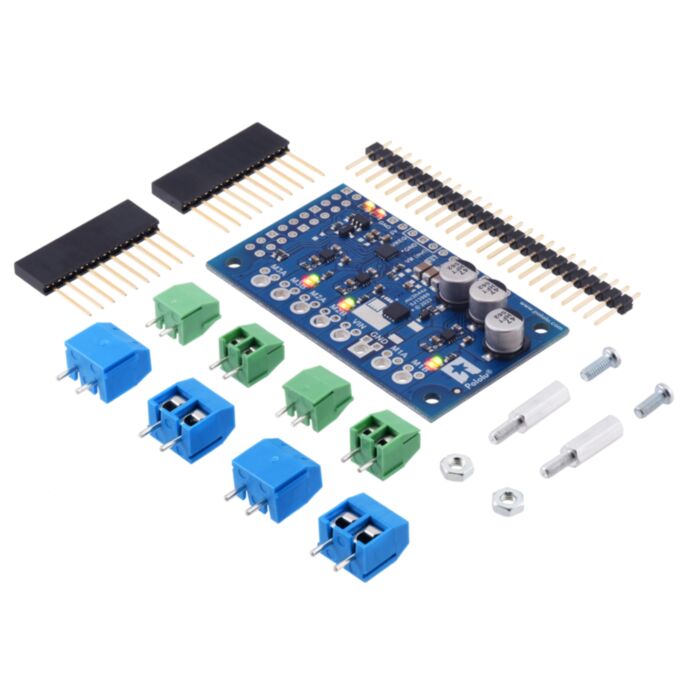

This version of the Motoron is a kit that ships with the following connectors included but not soldered in:

It also includes a set of two M2.5 standoffs (11 mm length), screws, and nuts that can be used to secure the board at the proper height for the GPIO connector.

There are more connectors included than can be soldered to the board, providing different assembly options to suit a variety of applications. Additional connector options are available separately, and you can also solder wires directly to the board for more compact installations.

Note: For applications where the Motoron will be used as a standalone board or at the top of an add-on board stack, it can be assembled with the included 0.1" male header pins and larger (5.0mm-pitch) blue terminal blocks. For applications where the Motoron will be one of the intermediate members of a stack of add-on boards, Pololu recommend assembling it with the stackable headers and smaller (3.5mm-pitch) green terminal blocks (just like Pololu's version with connectors already soldered). The terminal blocks are intended to be soldered to the larger through-holes for the power and motor connections, and the blue ones should get locked together prior to installation (see Pololu's short video on terminal block installation).

An Arduino Micro on a breadboard using a Motoron M3H550 to control three motors.

A Motoron M3H550 being controlled by a Raspberry Pi.

Motoron M3H256 or M3H550 Triple Motor Controller for Raspberry Pi pinout.

Features and specifications

  • Three motor control channels allow for independent control of up to three bidirectional brushed DC motors per Motoron
  • Wide operating voltage range: 1.8 V to 22 V (absolute maximum)
  • Maximum output current per motor: 1.7 A continuous, 5 A peak for <1 second
  • Reverse-voltage protection on motor power supply (down to -20 V)
  • Logic voltage range: 3.0 V to 5.5 V
  • Control interface: I²C
  • I²C clock speed: up to 400 kHz
  • Optional cyclic redundancy checking (CRC)
  • Configurable motion parameters:
    • Max acceleration/deceleration forward/reverse
    • Starting speed forward/reverse
    • Direction change delay forward/reverse
  • PWM frequency: eight options available from 1 kHz to 80 kHz
  • Command timeout feature stops motors if the Raspberry Pi stops communicating
  • Configurable automatic error response
  • Motor power supply (VIN) voltage measurement
  • Optional pins make it easy to power the Raspberry Pi from reverse-protected motor power through an external regulator (not included)
  • Two status LEDs
  • Motor direction indicator LEDs
  • Motoron Python library simplifies using the Motoron with Python or MicroPython
  • Comprehensive user’s guide

The Motoron family

The tables below list the members of the Motoron family and show the key differences among them. Each type is available in several versions to provide different options for the through-hole connectors: they can be purchased as an assembled product with connectors soldered in, as a kit with connectors included but not soldered in, or (for Arduino and Raspberry Pi expansions) as a standalone board without connectors.

Motoron motor controllers
micro versions

M1T550



M1U550

M2T550



M2U550

M1T256



M1U256

M2T256



M2U256
Control interface: I²C or UART serial
Motor channels: 1 (single) 2 (dual) 1 (single) 2 (dual)
Minimum
input voltage:
1.8 V 4.5 V
Absolute max
input voltage:
22 V 48 V
Recommended max
nominal battery voltage:
16 V 36 V
Max continuous
current per channel:
1.8 A 1.6 A 2.2 A 1.8 A
Available versions
with I²C:
Available verions
with UART serial:
Motoron motor controllers
Arduino and Raspberry Pi form factor versions

M3S550



M3H550

M3S256



M3H256

M2S24v14



M2H24v14

M2S24v16



M2H24v16

M2S18v18



M2H18v18

M2S18v20



M2H18v20
Control interface: I²C
Motor channels: 3 (triple) 2 (dual)
Minimum
input voltage:
1.8 V 4.5 V 6.5 V
Absolute max
input voltage:
22 V 48 V 40 V 30 V
Recommended max
nominal battery voltage:
16 V 36 V 28 V 18 V
Max continuous
current per channel:
1.7 A 2 A 14 A 16 A 18 A 20 A
Available versions
for Arduino:
M3S550 M3S256 M2S24v14 M2S24v16 M2S18v18 M2S18v20
Available versions
for Raspberry Pi:
M3H550 M3H256 M2H24v14 M2H24v16 M2H18v18 M2H18v20
Price: $20.95$30.95 $34.95$44.95 $59.95$69.95 $115.95$124.95 $59.95$69.95 $95.95$104.95

Dimensions

Size: 32.5 mm × 56 mm
Weight: 8 g1

General specifications

Channels: 3
Model: Motoron M3H550
Control interface: I²C
Minimum operating voltage: 1.8 V
Maximum operating voltage: 22 V
Continuous output current per channel: 1.7 A
Peak output current per channel: 5 A
Reverse voltage protection?: Y2
Connectors soldered?: N

Identifying markings

PCB dev codes: mc3h44a
Other PCB markings: 0J13969

Notes:

1
PCB assembly only, without optional included headers, terminal blocks, or standoffs.
2
Reverse voltage protection only works up to 20 V.

Documentation and other information
