Motoron M1U550 Single Serial Motor Controller (Header Pins Soldered)

SKU: POLOLU-5076 Brand: Pololu
The Motoron M1U550 Single I²C Motor Controller offers a compact solution for controlling one DC motor using a UART serial interface. Multiple Motoron...
$24.80 AUD, inc GST
$22.55 AUD, exc GST

Available with a lead time
Expect dispatch between May 30 and Jun 03

Quantity Discounts:

  • 10-25 $21.87 (exc GST)
  • 25+ $21.42 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Motoron M1T550 and M1U550 controllers make it easy to control a single bidirectional, brushed DC motor using an I²C or TTL serial (UART) interface, respectively. These compact (0.6" × 0.6") boards operate from 1.8 V to 22 V and can deliver continuous output currents up to 1.8 A. Multiple Motoron controllers can be configured to work on a single I²C or serial bus, allowing independent control of many motors. Unlike most of Pololu's motor drivers, the Motoron does not require any PWM outputs or timers on your microcontroller. Instead, only a single I²C or UART interface is needed regardless of how many Motorons you connect.

These Motoron controllers are available in several versions with different combinations of communication interfaces and connector options:

For dual-channel alternatives, consider the Motoron M2T550 and M2U550.

Details for item #5076

Typical wiring diagram for connecting a microcontroller to a Motoron M1U256/M1U550 Single Serial Motor Controller.

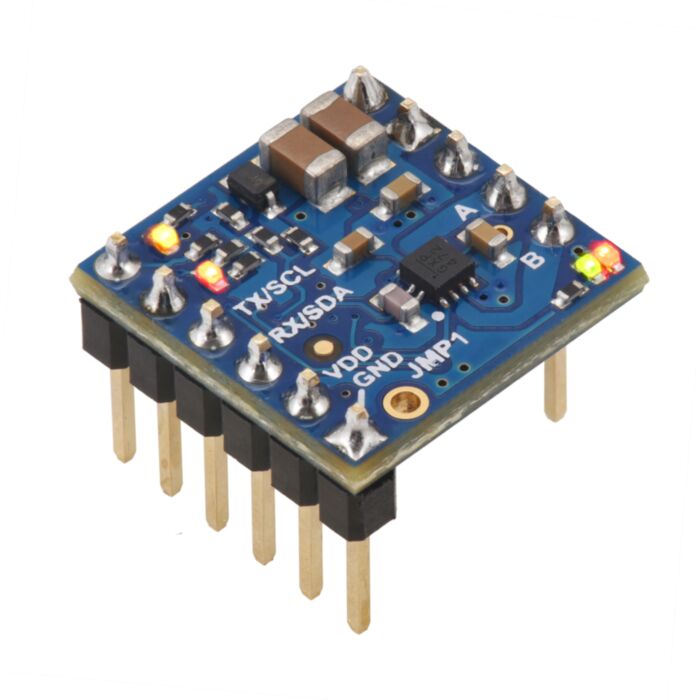

The M1U550 has a TTL serial (UART) interface, and this version ships with soldered headers.

Motoron M1T550/M1U550 Single Motor Controller (Header Pins Soldered).

Motoron M1U550 Single Serial Motor Controller, bottom view.

Features and specifications

  • One motor control channel allows for control of one bidirectional brushed DC motor per Motoron
  • Wide operating voltage range: 1.8 V to 22 V (absolute maximum)
  • Maximum output current per motor: 1.8 A continuous, 5 A peak for <1 second
  • Reverse-voltage protection on motor power supply (down to -20 V)
  • Logic voltage range: 3.0 V to 5.5 V
  • Control interface:
    • M1T550: I²C (up to 400 kHz)
    • M1U550: non-inverted TTL serial (up to 250 kbps)
  • Optional cyclic redundancy checking (CRC)
  • Configurable motion parameters:
    • Max acceleration/deceleration forward/reverse
    • Starting speed forward/reverse
    • Direction change delay forward/reverse
  • PWM frequency: eight options available from 1 kHz to 80 kHz
  • Command timeout feature stops the motor if the Motoron stops receiving commands
  • Configurable automatic error response
  • Motor power supply (VIN) voltage measurement
  • Two status LEDs
  • Motor direction indicator LEDs
  • Error output for easier detection of error conditions
  • Motoron Arduino library simplifies using the Motoron with an Arduino or compatible controller
  • Motoron Python library simplifies using the Motoron with Python or MicroPython
  • Comprehensive user’s guide
  • Compact 0.6" × 0.6" size

A Raspberry Pi Pico on a breadboard using a Motoron M1T550/M1U550 Motor Controller to control a motor.

The Motoron family

The tables below list the members of the Motoron family and show the key differences among them. Each type is available in several versions to provide different options for the through-hole connectors: they can be purchased as an assembled product with connectors soldered in, as a kit with connectors included but not soldered in, or (for Arduino and Raspberry Pi expansions) as a standalone board without connectors.

Motoron motor controllers
micro versions

M1T550



M1U550

M2T550



M2U550

M1T256



M1U256

M2T256



M2U256
Control interface: I²C or UART serial
Motor channels: 1 (single) 2 (dual) 1 (single) 2 (dual)
Minimum
input voltage:
1.8 V 4.5 V
Absolute max
input voltage:
22 V 48 V
Recommended max
nominal battery voltage:
16 V 36 V
Max continuous
current per channel:
1.8 A 1.6 A 2.2 A 1.8 A
Available versions
with I²C:
Available verions
with UART serial:
Motoron motor controllers
Arduino and Raspberry Pi form factor versions

M3S550



M3H550

M3S256



M3H256

M2S24v14



M2H24v14

M2S24v16



M2H24v16

M2S18v18



M2H18v18

M2S18v20



M2H18v20
Control interface: I²C
Motor channels: 3 (triple) 2 (dual)
Minimum
input voltage:
1.8 V 4.5 V 6.5 V
Absolute max
input voltage:
22 V 48 V 40 V 30 V
Recommended max
nominal battery voltage:
16 V 36 V 28 V 18 V
Max continuous
current per channel:
1.7 A 2 A 14 A 16 A 18 A 20 A
Available versions
for Arduino:
M3S550 M3S256 M2S24v14 M2S24v16 M2S18v18 M2S18v20
Available versions
for Raspberry Pi:
M3H550 M3H256 M2H24v14 M2H24v16 M2H18v18 M2H18v20
Price: $20.95$30.95 $34.95$44.95 $59.95$69.95 $115.95$124.95 $59.95$69.95 $95.95$104.95

Dimensions

Size: 0.6" × 0.6"
Weight: 1.9 g

General specifications

Channels: 1
Model: Motoron M1U550
Control interface: non-inverted TTL serial (UART)
Minimum operating voltage: 1.8 V
Maximum operating voltage: 22 V
Continuous output current per channel: 1.8 A
Peak output current per channel: 5 A
Reverse voltage protection?: Y1
Connectors soldered?: Y

Identifying markings

PCB dev codes: mc1u44a
Other PCB markings: 0J14001

Notes:

1
Reverse voltage protection only works up to 20 V.
