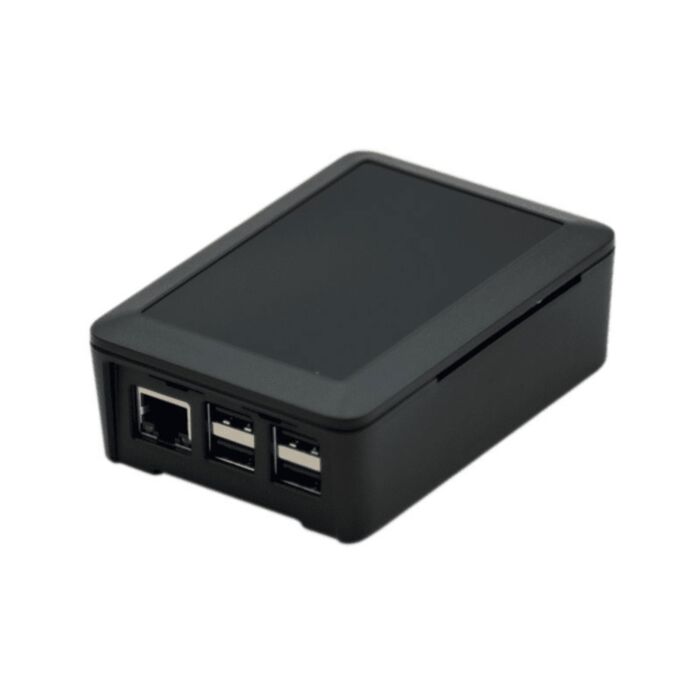

ModMyPi Modular RPi Case (Black)

SKU: CE05703

$15.95 AUD, inc GST
$14.50 AUD, exc GST
ModMyPi Modular RPi Case (Black)
15.95 AUD

SKU: CE05703

$15.95 AUD, inc GST
$14.50 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

New Updated Version - Compatible with both Raspberry Pi 2 and 3 with Dual Light Pipes! The ModMyPi Modular Raspberry Pi case!

ModMyPi's new deluxe Raspberry Pi 2/3 Model B case is a fully customizable and adaptable modular unit aimed to suit a range of Raspberry Pi applications. Designed with a stealth look and integrated LED lights pipes, it’s the perfect accessory to any Raspberry Pi enthusiast’s toolkit!

The Modular Case comes equipped with a range of customizable modular features including optional optical window, stackable 10mm spacer plates, micro SD card cover, dual-use USB & HDMI security shroud, secure screw locking, VESA adaptors, and internal SD card holder.

Spacer plates are designed to be stacked up to 5 spacers high, so you can grow your Pi case with your project! Additional Screws are Required for more than 1 Spacer.

Features

  • Raspberry Pi 2/3 Model B and B+ Two-Part (Lid & Base) Plastic Case
  • LED Status Light Pipes
  • Stealth Streamlined Look - Spouse Tested & Confirmed
  • Clip Fit Raspberry Pi Mount with Optional Screw Locking (Included)
  • Positive and Secure Case Locking via Screws (Included)
  • Designed for Hacking - Extra Large Internal Room for Breakout Boards
  • Airflow - Internal Volume Perfect for Adding Heat Sinks & Keeping your Pi Cool
  • GPIO 40 Pin Ribbon Cable Slot
  • CSI Camera Cable Cable Slot
  • DSI LCD Video Cable Slot
  • GPIO Fly-Through Cable Slot for Smart Power Supply Switches
  • Additional Internal SD Card Holder
  • In-Built Four Point 50mm M3 Mount & Two Point 40mm M3 Wall Mount Features
  • Matt Finish Body with Gloss Cap
  • Optical See-Through Window (Clear Version Only)
  • Available in a Range of Colours Including BlackBlueClearWhite and Raspberry
  • Designed in the UK
  • Strong & Durable ABS Plastic

Case Dimensions

  • Length: 104.95mm
  • Width: 74.95mm
  • Height: 36.00mm

Internal Dimensional Volume for Breakout Boards

  • Length: 90.00mm
  • Width: 58.50mm
  • Height*: 25.70mm (*Measured from Top of RPi PCB to Internal Top of Lid)
  • Internal Volume HAT Compliant

Modular Add-On Options Include the Following

  • Micro SD Card Cover
    • Flush, Lockable and Tamper-Proof.
    • Secure your Micro SD Card from Probing Fingers
    • Protect your Micro SD Card from Accidental Knocks & Bangs
  • 10mm Stackable Spacers
    • Makes Your Case Compatible with 99% of Breakout Boards
    • Spacers Raise Internal Height by 10mm Enabling the Case to Grow with your Project
    • Spacers can be Stacked Increasing Internal Height by up to 50mm or more!
    • Great for Embedded Applications, and Hobbyist Projects
  • USB & HDMI Security Cover
    • Dual-Use - Compatible with Either Set of I/O Ports e.g. HDMI or USB Side
    • Secure and Tamper-Proof
    • RJ45 & Micro USB Power Breakout Hatches
    • Off-Set to Enable the Use & Internal Protection of up to 4 Nano USB Dongles!
  • VESA Mounts
