Miniware DT71 Mini Digital Tweezers

Add to Wish List

Skip to the beginning of the images gallery

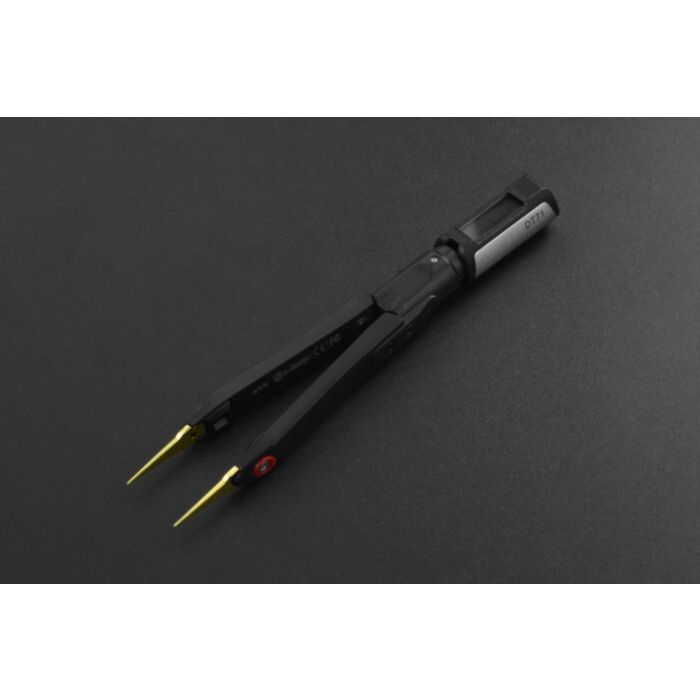

Miniware DT71 Mini Digital Tweezers

SKU: FIT0847 Brand: DFRobot

Retired Product

Replaced by: CE07862

This product has been replaced by: CE07862
This product is no longer available. This page is only for reference.

Introduction

DT71 mini digital tweezers is a tool that integrates multi-function measurement, signal generator, and fully differential input measurement.

It has a unique trinary structure that includes a controller, measuring arm and tweezers head, which can be flexibly replaced and combined.

There is an OLED screen on the 360° rotatable controller, which provides visibility from all angles. With smart gesture recognition, it can automatically recognize left and right operations and adjust the screen display.

Different from other LCR testers, DT71 has no physical buttons. Instead, there is a hidden touch button on the top of the controller, which can be easily operated with a light touch.

The test arm uses magnetic elasticity to provide easy clipping, ergonomic, and durable structure.

It comes with gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.

The built-in dual rechargeable lithium batteries can last 10 hours for one full charge, and the charging time is about 2 hours.

A variety of measurement types are available for measuring resistance, capacitance, inductance, voltage, frequency, diodes and other devices.

Tweezers have manual and automatic recognition modes. In automatic mode, DT 71 can automatically identify SMDs including resistance, capacitance, inductance and diode, and display primary and secondary parameters, which is very useful for quickly distinguishing different components.

At the same time, the built-in miniature waveform signal generator can output a variety of waveform signals, providing a perfect solution for the debugging and maintenance of complex electronic systems and the classification and detection of discrete chip components.

With a compact and mini size, it is convenient to carry around, overturning the appearance restrictions of traditional desktop and hand-held measuring instruments. It is an innovative work in the appearance and structure design of measuring instruments and can be used in any place such as laboratory, workbench, warehouse and outdoor.

With intelligent functions such as automatic identification, automatic shutdown, firmware upgrade, etc.

Measurement parameters	Range	Resolution	Accuracy
Resistance	0.1O~1KO	0.1O	0.5%+2
1KO~2000KO	1KO	0.5%+2
Capacitance	0.1pF~1000pF	0.1pF	2%+3
0.001uF~400uF	0.001uF	2%+3
Inductance	1uH~1000uH	1uH	5%+3
1mH~50mH	1mH	5%+3
Voltage	1mV~100mV	1mV	2%+5
0.1V~40V	0.1V	1%+3
Frequency	10Hz~1KHz	10Hz	0.1%+3
1KHz~20000KHz	1KHz	0.1%+3
Diode	Silicon diode, Schottky diodes, LED (forward voltage 0.1~3V)	0.1V	1%
Maximum input voltage	-5V~+50V
Input resistance	1MO

Features

Three-section split structure

OLED screen

Intelligent posture judgment

With hidden touch buttons

Ergonomically design

Specification

Operating hours: 10 hours of continuous work

Charging time: 2 hours

Display: 96*16 OLED

Dimension Controller: 47mm/1.85 inch

Dimension Measuring arm: 106mm/4.17 inch

Operation: Hidden touch button

Parts List

DT71 Controller x1

Test Arm x1

Tweezer Tip x2

Dedicated Data Cable x1

Carrying Case x1

Safety Instructions x1
