Mini Tower NAS Kit for Raspberry Pi 4B

SKU: WS-23117 Brand: Waveshare

Retired Product

Replaced by: Pi 4 Case
Warning - This product does NOT include the Raspberry Pi, please check the Shipping List
This product has been replaced by: Pi 4 Case
This product is no longer available. This page is only for reference.

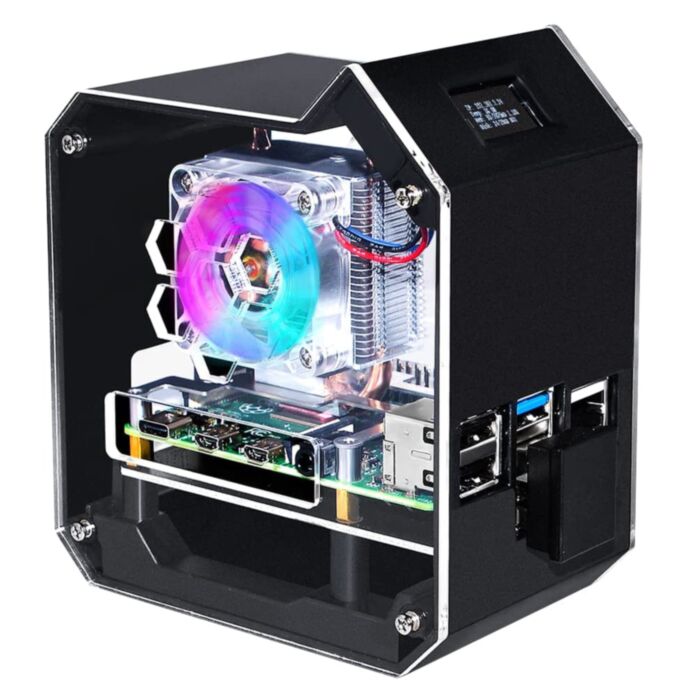

Mini Tower NAS Kit for Raspberry Pi 4B, supports up to 2TB M.2 SATA SSD with OLED display and active cooling.

Dedicated Mini Tower NAS Kit for Raspberry Pi 4B, including M.2 SATA SSD Expansion Board, ICE Tower Cooler, Mini Tower Case, 0.96inch OLED, and GPIO Edge Extension header. It can perfectly match your Raspberry Pi 4B and can be assembled into a mini and good looking Desktop NAS, supports up to 2TB M.2 NGFF SSD, with an excellent cooling system, OLED screen, cool RGB LED light, speed-adjustable PWM fan, and 40PIN GPIO extension header.

Features

  • Compatible with Raspberry Pi 4B
  • ABS material case and two transparent acrylic side panels
  • With 0.96 inch OLED screen already mounted on the case, 28 x 64 pixels, default I2C address: 0x3C
  • M.2 SATA SSD 2280/2260/2240 mass storage adapter board, supports up to 2TB M.2 SATA SSD

A driver is required for the RGB light on fan and LED light on OLED screen driver board, and OLED screen needs to be enabled to display information.

M.2 SATA SSD 2280 mass storage device should be purchase separately that features an M key cutout.

Note: The expansion board does NOT support NVME inteface drives. Only SATA interface M key SSDs are compatible.





Installation



Resources

Wiki for Mini Tower NAS Kit for Raspberry Pi 4B

Shipping List
