Mini Tower NAS Kit for Raspberry Pi 4

SKU: CE08473 Brand: The Pi Hut

Retired Product

Replaced by: CE07434

This product has been replaced by: CE07434
This product is no longer available. This page is only for reference.

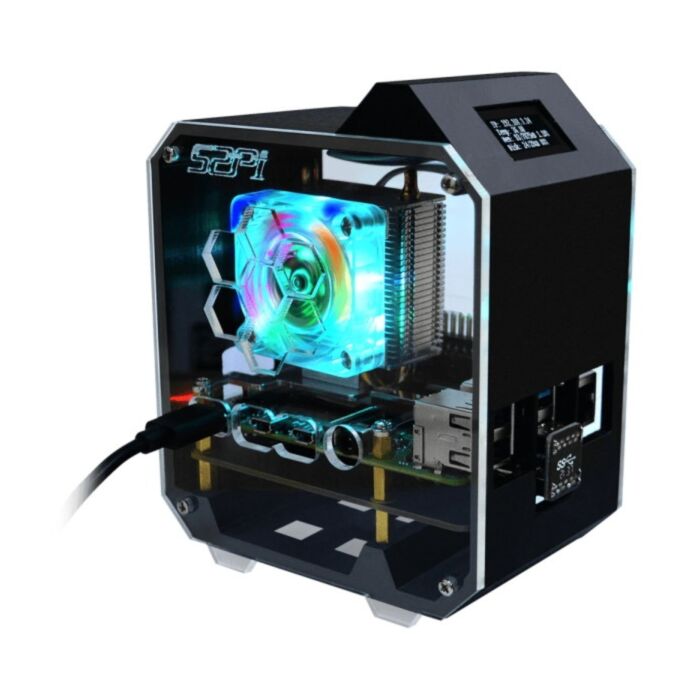

This Mini Tower NAS Kit from 52Pi is quite possibly the best looking NAS enclosure we've seen for the Raspberry Pi 4! The body of the case is made from 3D printed black PLA with laser-cut acrylic side panels, showing off your Raspberry Pi and other hardware with the LED fan lighting everything up.

The kit holds your Raspberry Pi 4 (not included) and comes with an M.2 SSD expansion board allowing you to use your Raspberry Pi with a 120GB or 240GB M.2 SSD (not included - NGFF 2280 Key-B style only). An 0.96" OLED display is included to fit the front of the enclosure to code your own information display for your project.

A 52Pi ICE Tower cooler is also included in the kit to keep your Raspberry Pi cool whilst also illuminating the case with the LED fan. A standard black fan is included for more subtle setups!

All Raspberry Pi ports are accessible including the GPIO pins via the included right-angle adapter which you can connect to a ribbon cable (not included).

Important Information

This kit does not come with a Raspberry Pi, M.2 SSD, SD card or power supply
Only accepts NGFF 2280 Key-B M.2 SSDs
It should also be noted that you shouldn't use an M.2 SSD with a higher power rating than around 5.5W. NVME Drives are keyed differently to show that they require a PCIe interface, so they won't work with this board!
The main body of the case is 3D printed and may have rough sections
The M.2 Expansion supports UASP but does not support TRIM

Features

Fit for Raspberry Pi 4 Model B Only
Ideal storage solution for Raspberry Pi 4
Build Your own NAS!
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying
Blue LED indicator indicates drive status
Create your own information display with the included 0.96" OLED display
High-performance heat dissipation

Package Contents

1x 3D printed case body
2x laser-cut side panels (remove the protective film when installing)
1x ICE Tower Cooler (with LED and black fan)
2x OLED displays
1x M.2 Expansion board
1x GPIO edge expansion board
1x USB 3.1 adapter
1x User guide
Fixings and standoffs
Screwdrivers

(the user guide lists a power supply as included, however we stock the version without a power supply)

Raspberry Pi Mini NAS contents

Specifications

Only supports M.2/NGFF SSD Key-B 2280 length
X862 M.2 Expansions V2.0 Supports UASP (TRIM not supported)
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
Integrated high-efficiency step-down converter, 3.3V max 4A to power the SSD
USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
Custom-made USB 3.1 jumper to connect with Raspberry Pi - no cables required!
I2C protocol 0.96" OLED Screen
OLED resolution: 128x64 pixels
OLED driver: SSD1306
Classic ICE Tower Cooler

Resources

Assembly

Please peel off the protective film from the side panels before fitting!

Mini NAS assembly 1

Mini NAS assembly 2
