MI:power Board for BBC micro:bit V2

Warning: This product requires a button battery to operate which is hazardous to young children. Do not use this product for projects that are potentially accessible to young children.

The MI:power board for the BBC micro:bit brings real portability to your wearable projects. The stylish, lightweight PCB is designed to fit snugly against the BBC micro:bit and features a built in buzzer and 3V coin cell holder. This latest version has been redesigned to fit both the the V1 and V2 micro:bit.

When assembled, the MI:power board is connected directly to the 3V, GND and P0 connections on the micro:bit. The 3V and GND connections provide power to the micro:bit and the built in buzzer is connected to P0, which is the default output pin when using the audio functions in the Block Editor software.

The board has an easy to access on/off switch, which makes it easy to turn a project on and off, rather than have to disconnect the power supply from the BBC micro:bit.

Once the unit is assembled and attached to the BBC micro:bit the mechanical fixings prevent the battery from being removed unless you use a screwdriver, so whatever the use, the battery will remain safely in place.

Spacers, fixings and a battery are all provided.

Please Note: BBC micro:bit is NOT included. Battery is included.

Features

• Power your BBC micro:bit from a stylish PCB.
• On-Board buzzer.
• Easy access on/off switch.

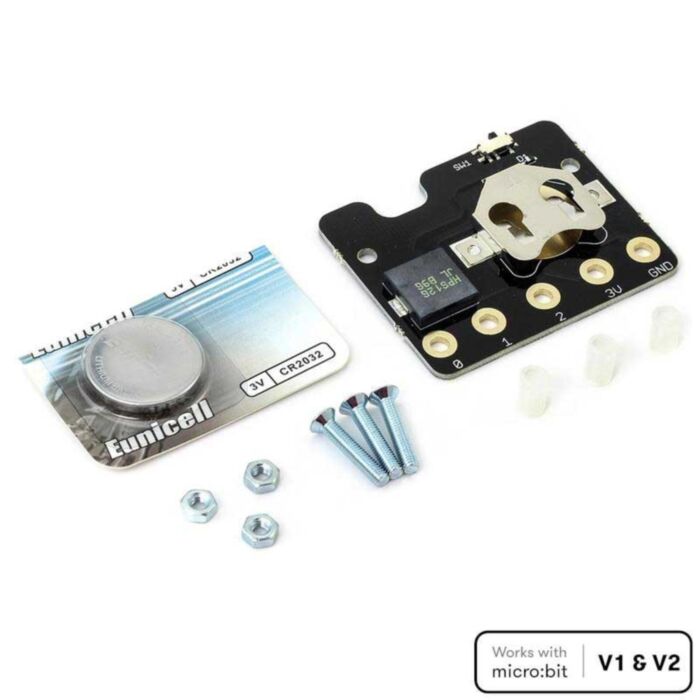

Contents

• 1 x MI:power board for the BBC micro:bit.
• 3 x Counter Sunk M3 x12mm Machine Screws.
• 3 x M3 Hex Full Width Nuts.
• 3 x Plastic Spacers.
• 1 x CR2032 3V Coin Cell.

Requires:

• 1 x BBC micro:bit.
• Pozi drive screwdriver.
• Pliers.

Resources:

• Build Instructions
• Watch Mount DXF Zip.
• Plant Spike DXF Zip.
• Lanyard DXF Zip.
• Character DXF Zip.
• Belt Mount DXF Zip.
