Mesh Bee - Open Source Zigbee Pro Module with MCU (JN5168) (Seeed Studio)

SKU: SS114990002 Brand: Seeed Studio

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

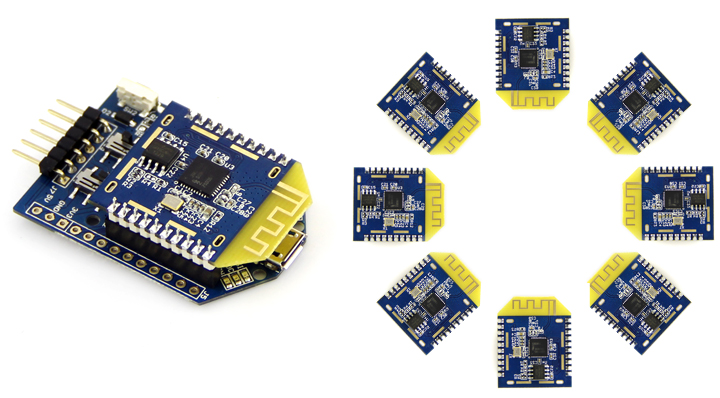

Mesh Bee is a 2.4GHz wireless transceiver from seeed studio. It's based on NXP's newly JN516x series wireless microcontroller chip and supports ZigBee Pro network stack. The factory firmware wraps the complicated ZigBee stack operation into a few easy to use serial commands, and drives Mesh Bee into a transparent serial communication node that can be part of a simple point-to-point connection or a complex mesh network. Moreover, Mesh Bee is totally open hardware and open sourced, which means that you can customize the firmware on your requirements. You can use JN516x's ARM core to control things and JenOS to simplify your development. The development environment and tools from NXP are all free. Mesh Bee will bring you lots of fun.

Feature:

Range: Indoor/Urban: up to 30m; Outdoor line-of-sight: up to 100m;
Receiver Sensitivity: -95dBm
Data Transmission Rate: 4800, 9600, 19200, 38400, 57600, 115200 (bps)
Working Frequency: unlicensed 2.4GHz band
Communication type: Point to Point or Start Network or Mesh Network
OTA support: update node's firmware on-the-air
Easy-to-Use Serial Interface and rich extendable ports
Easy-to-Use AT Command: Setup ZigBee network, Set Serial Baud Rate, etc.
Open source Hardware and Firmware
Programmable 32-bit RISC CPU: 32M clock, 256KB Flash, 32KB RAM, 4KB EEPROM
Socket compatible with the Xbee, so you can plug it into any Xbee socket as a quick replacement.

Note: Mesh Bee will not communicate with Xbee as the ZigBee stack versions they're using are different.

Specificationï¼š

Microprocessor :JN5168 (32-bit RISC CPU, 32MHz clock speed)
Resources :256kB/32kB/4kB (Flash/RAM/EEPROM)
PCB size :24.5mmx30.5mmx0.8mm
Outline Dimension :24.5mmx30.5mmx9.77mm
Indicators :No
Power supply :3.3V
IO counts :12
ADC input :3(2 multiplexing with IO)
Interfaces :UARTx2, SPI, I2C
Program interface :UART MISO
Connectivity :Socket compatible with XBee
Communication Protocol :Uart(TTL)
Operating Frequency Band :2.4GHz
Stack/Software :RF4CE, JenNet-IP , ZigBee Pro

Resources

Application

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
