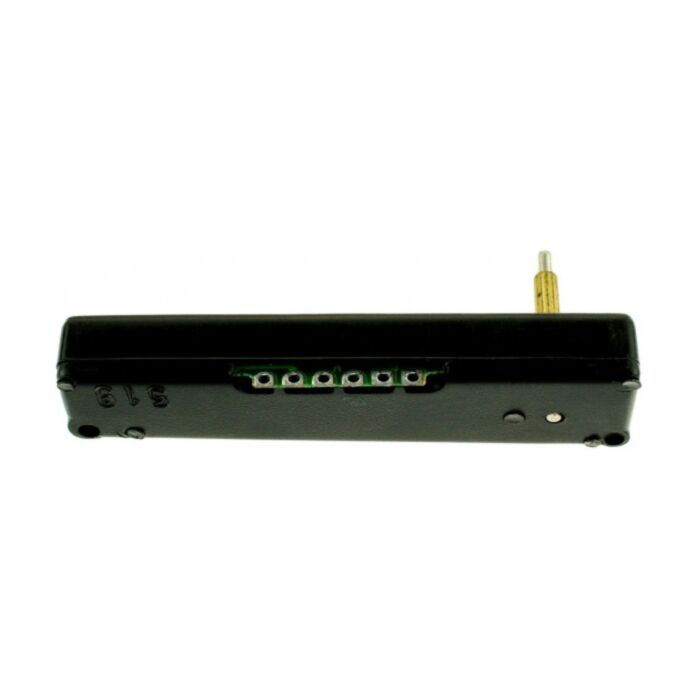

Memory Metal Actuator - NM70R (6P)

SKU: FIT0257

$18.60 AUD, inc GST
$16.91 AUD, exc GST

More Views

Memory Metal Actuator - NM70R (6P)
18.6 AUD

SKU: FIT0257

$18.60 AUD, inc GST
$16.91 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Shape Memory metals that were developed by NASA for the space industry, and have been used for increasing applications down on earth.For example,there have been limited studies on using these materials in robotics. They make it possible to create very light robots.

Tiny, silent, and lightweight at just 4.2 grams, NanoMuscle Rotary shape memory alloy actuators provide 60° of rotation using a linear NM70-Super memory metal actuator encapsulated in a body with a spring-loaded, cam-action rotary output. The NanoMuscle Rotary actuators come in two different versions: the 2-pin NM70R-2P, and the 6-pin NM70R-6P. The -2P actuator ‘bounces’ between limit stops when connected to a power source, and the -6P provides greater control, with access to end limit sensors, and can be driven by the MADv5 (sold separately). Operating voltages are ~3-9V. Refer to the Downloads page for additional details.

Application
  • Automotive
    • Bi-directional grill louver mechanism
    • Fuel tank door release mechanism
    • Trunk, glove compartment release mechanism
  • Consumer-
    • Memory card ejector
    • Electronic latch release
    • Security doors and locks
    • Biometric sensor assist
  • Hobby/Miscellaneous
    • Grasping device
    • Undersea Core Sampling Robot
    • Point Of Use sale items
    • Latch release for ROVs
    • Pneumatic actuator replacement

Specification
  • Operating voltages: 3-9v
  • Rotation up to 60 degrees in either direction
  • provides greater control, with access to end limit sensors
  • Simply apply 3-6V at 350mA and the rotary will turn
  • Size: 50x10x15mm
  • Weight: 4.2g

Shipping List
  • Memory Metal Actuator - NM70R(6P)1 unit
