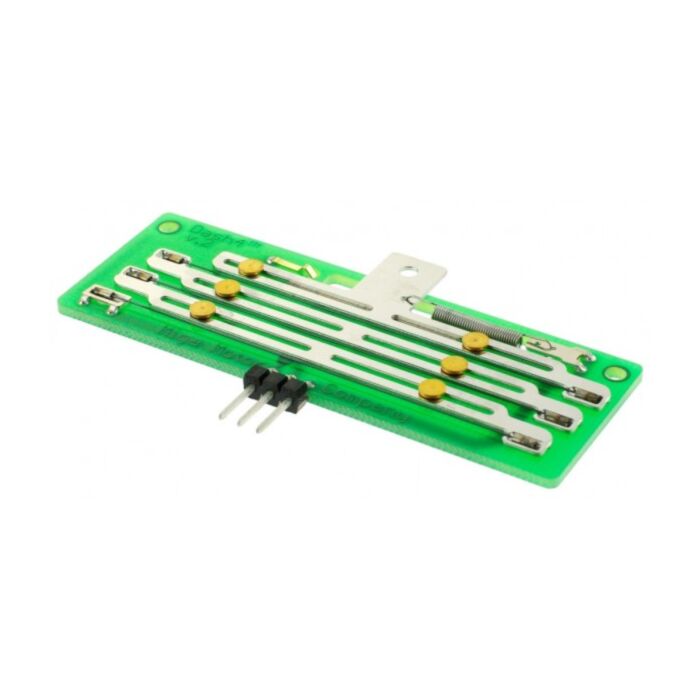

Memory Metal Actuator - Dash4

SKU: FIT0259

$52.07 AUD, inc GST
$47.34 AUD, exc GST

More Views

Memory Metal Actuator - Dash4
52.07 AUD

SKU: FIT0259

$52.07 AUD, inc GST
$47.34 AUD, exc GST
OR
Brand: DFRobot

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Shape Memory metals  were developed by NASA for the space industry, and have been used for increasing applications down on earth.For example,there have been limited studies on using these materials in robotics. They make it possible to create very light robots.

The Dash4 memory metal actuator provides a stroke of 0.23" and over 1.75 pounds of actuation force. The built-in limit switch allows for safe operation over a wide range of voltage (thus, actuation speed) when used along with the MAD-v5 (sold separately). The Dash4 is just under an inch wide, and less than 0.1" thick!

Application
  • Automotive
    • Bi-directional grill louver mechanism
    • Fuel tank door release mechanism
    • Trunk, glove compartment release mechanism
  • Consumer
    • Memory card ejector
    • Electronic latch release
    • Security doors and locks
    • Biometric sensor assist
  • Hobby/Miscellaneous
    • Grasping device
    • Undersea Core Sampling Robot
    • Point Of Use sale items
    • Latch release for ROVs
    • Pneumatic actuator replacement

Specification
  • Stroke: 0.23 inches(5.8mm)
  • Output Force: Constant 1.75 lb-f
  • Actuation Time: 50 ms to Position-Hold
  • 7V actuation: ~2.1 amps, 0.25 *
  • Resistance: 3.2 ohms*
  • Mounting: Holes for 2x 2-56 screws
  • Eletrical interface: 3P header on 0.1" pitch
  • Operating Temperature: -20~170°K (-29~60℃)
  • Size: 68x38x3mm
  • Weight: 0.35 ounces (10g)

Shipping List
  • Memory Metal Actuator - Dash41 unit

Documents
Documentation and Resources:
