Membrane 3x4 Matrix Keypad + extras - 3x4

SKU: ADA419

$6.95 AUD, inc GST
$6.32 AUD, exc GST

More Views

Membrane 3x4 Matrix Keypad + extras - 3x4
6.95 AUD

SKU: ADA419

$6.95 AUD, inc GST
$6.32 AUD, exc GST
1 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Mon, 25th of Sep
Shipping Offer

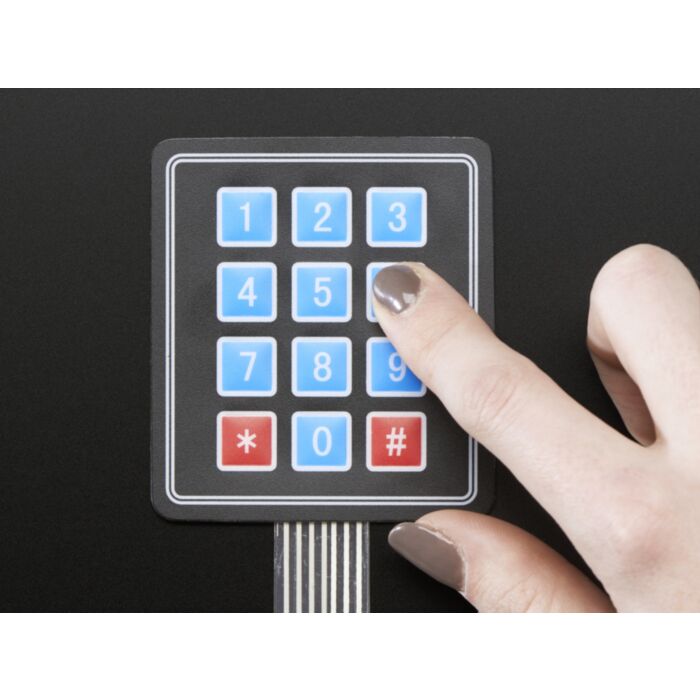

Punch in your secret key into this numeric matrix keypad. This keypad has 12 buttons, arranged in a telephone-line 3x4 grid. It's made of a thin, flexible membrane material with an adhesive backing (just remove the paper) so you can attach it to nearly anything. The keys are connected into a matrix, so you only need 7 microcontroller pins (3-columns and 4-rows) to scan through the pad. Check the tutorials tab for links to an Arduino library and example code.

Adafruit include a 7-pin extra-long header strip so you can plug this into a breadboard with ease.

Technical Details

  • Weight: 7.5 grams
  • Keypad dimensions: 70mm x 77mm x 1mm (2.75" x 3" x 0.035")
  • Length of cable + connector: 85mm
  • 7-pin 0.1" pitch connector

There is a very nice Matrix Keypad Arduino library that works great with this item. The only thing we suggest is to change the initialization code in the examples to this:

#include "Arduino.h" #include "Keypad.h" const byte ROWS = 4; //four rows const byte COLS = 3; //three columns char keys[ROWS][COLS] = { {'1','2','3'}, {'4','5','6'}, {'7','8','9'}, {'*','0','#'} }; byte rowPins[ROWS] = {8, 7, 6, 5}; //connect to the row pinouts of the keypad byte colPins[COLS] = {4, 3, 2}; //connect to the column pinouts of the keypad Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

This will swap the * and # keys and also let you connect to the Arduino to match this image
