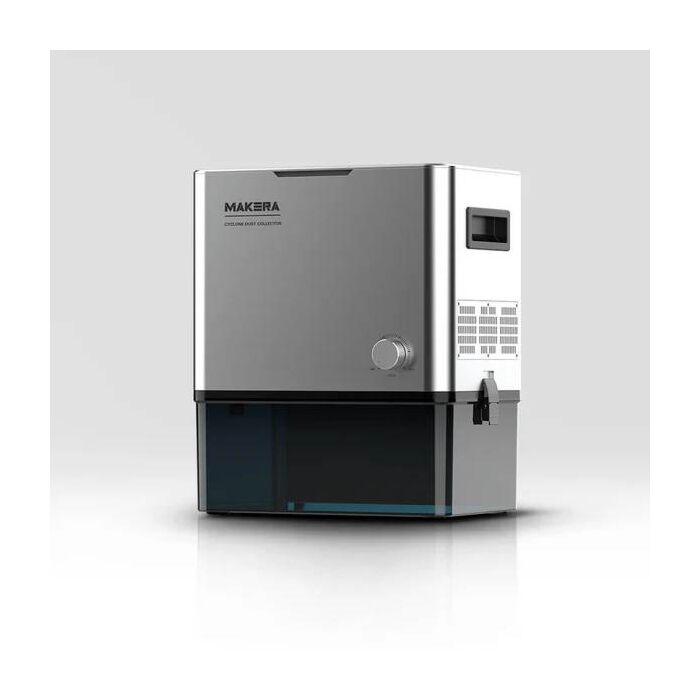

Makera Cyclone Dust Collector

SKU: CE10419 Brand: Makera

Engineered for maximum dust collection using cyclone separation and three-stage filtration, with programmable G-code start/stop for desktop CNCs.

$1,009.95 AUD, inc GST

$918.14 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 29 and Feb 09

Quantity Discounts:

3+ $881.41 (exc GST)
5+ $853.86 (exc GST)

Dual-System Continuous Dust Collection

Engineered for Milling: Makera’s dual dust collection system (cyclone separation + multi-stage filtration) captures debris during machining, eliminating cleanup pauses and allows you to run your CNC virtually debris-free continuously.

Three-layer Filtration

Pre-filter sponge, 99.99% HEPA filter, and activated carbon - captures virtually all fine dust while neutralising odours, ensuring you breathe easier and create pristine air for a healthier making-environment.

G-Code Triggered Automation

CAM integrated automation triggers CNC-synced dust extraction start/stop, letting you walk away worry-free - making post-project dust avalanches a thing of the past and keeping your mind completely in the creative zone.

Next-Level Quiet

At a max 70 dB – significantly quieter than any other external dust extractors – operate comfortably in homes, offices, or classrooms with zero ear fatigue or disruptions to others.

Industrial-grade Cyclone System

Makera pioneers a pro-grade cyclone system for desktop CNC – diverting 97% of large chips directly to the dust bin before reaching filters – extending filter lifespan 3X and enabling uninterrupted operation with zero clogs or frequent filter replacements.

Plenty of Control Options

The Makera Controller App gives you full control and peace of mind over your dust collection, allowing you to remotely fine-tune suction or toggle power via WiFi.

*App control available for the Carvera Air only at this time.

The Makera Cyclone Dust Collector is a dual‑stage extraction unit designed for desktop CNC use. It combines cyclone separation with multi‑stage filtration to remove chips and fine dust during machining. Compatible with Makera Carvera Air and Carvera machines, and suitable for other small desktop CNCs.

Dust collection system: cyclone separation plus multi‑stage filtration.
Filtration: pre‑filter sponge, HEPA filter (99.99% efficiency), and activated carbon.
Dust bin capacity: 6 L (household vacuums typically range from 1-5L)
Performance: max vacuum pressure 12 kPa; max flow rate 900 L/min.
Noise level: up to 70 dB.
Control options:
- Automatic start/stop via G‑code trigger.
- Manual controls.
- App control via Makera Controller (Carvera Air only).
Included accessories: dust collection hose, filter sponge, data cable, power cord, and user manual.
Dimensions (W x D x H): 300 x 218 x 354 mm

Resources

Manual and Examples
