M5Stack AirQ Environmental Monitor Kit
Quantity Discounts:
- 5-10 $191.95 (exc GST)
- 10+ $185.95 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.

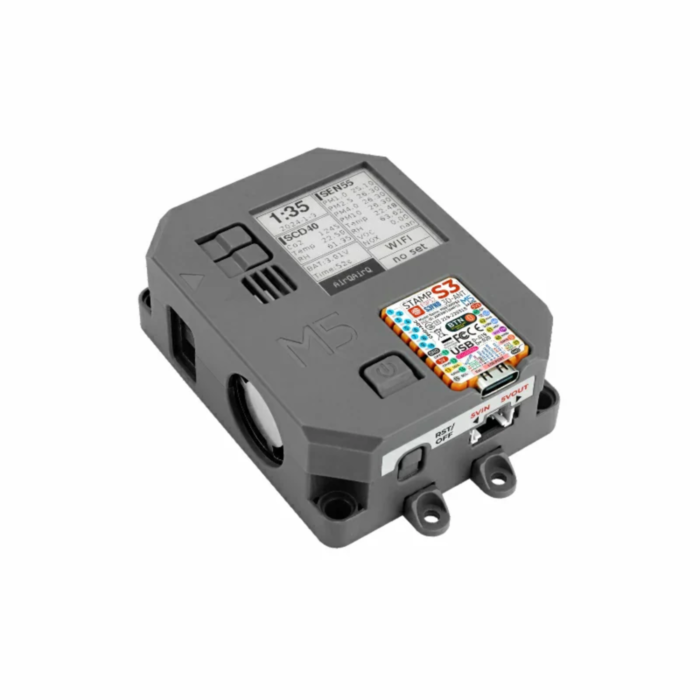

Transform environmental monitoring with the M5Stack AirQ Environmental Monitor Kit, a comprehensive IoT solution that provides real-time tracking of essential air quality parameters. This versatile device combines high-precision sensors with cloud connectivity to deliver accurate measurements of PM2.5, CO2, VOC, temperature, and humidity, making it ideal for implementing in various settings from educational laboratories to industrial environments.
Key Features and Technical Specifications
- Dual high-precision sensors:
- SEN55 for PM1.0, PM2.5, PM4, PM10, temperature, humidity, and VOC
- SCD40 for CO2 concentration monitoring
- Powerful ESP32-based StampS3 controller with:
- 8MB Flash memory for robust data storage
- Built-in 2.4GHz Wi-Fi connectivity
- 1.54-inch e-ink display (200x200 resolution) for clear data visualization
- 390mAh rechargeable battery with power management system
- Integrated RTC for scheduled wake-up and monitoring
- Multiple mounting options including LEGO-compatible holes and magnetic attachment
- Operating temperature range: 0-40°C
How to Use
Setting up the AirQ Monitor is straightforward:
- Initial power-on: Press the "WAKE" button or utilize RTC-triggered wake-up
- For program downloads: Hold the G0 button before powering on, release after power-up
- Power management:
- Set GPIO46 high to maintain power during operation
- Power off by pressing RST button or setting GPIO46 low
- Data monitoring: Access readings through the EZDATA cloud platform for remote visualization
For enhanced gas detection capabilities, consider adding the DFRobot Analog Gas Sensor MQ5 for LPG and natural gas monitoring, or the DFRobot Analog Gas Sensor MQ2 for broader gas detection including hydrogen and smoke.
What's in the Box
- 1x AirQ Environmental Monitor
- 1x Operating Instructions
Compatibility
The AirQ Monitor integrates seamlessly with:
- M5Stack development ecosystem
- Arduino IDE
- UIFlow (Blockly, MicroPython)
- EZDATA cloud platform
Additional Resources
About M5Stack
M5Stack specialises in developing modular, stackable, and scalable IoT development solutions. Their products are designed to simplify the prototyping and implementation of electronic projects while maintaining professional-grade quality. With a focus on education and innovation, M5Stack provides comprehensive documentation and support for their entire ecosystem of components and development tools.
