LSM303 Breakout Board - Tilt Compensated Compass

SKU: SEN0079

$22.74 AUD, inc GST
$20.67 AUD, exc GST

More Views

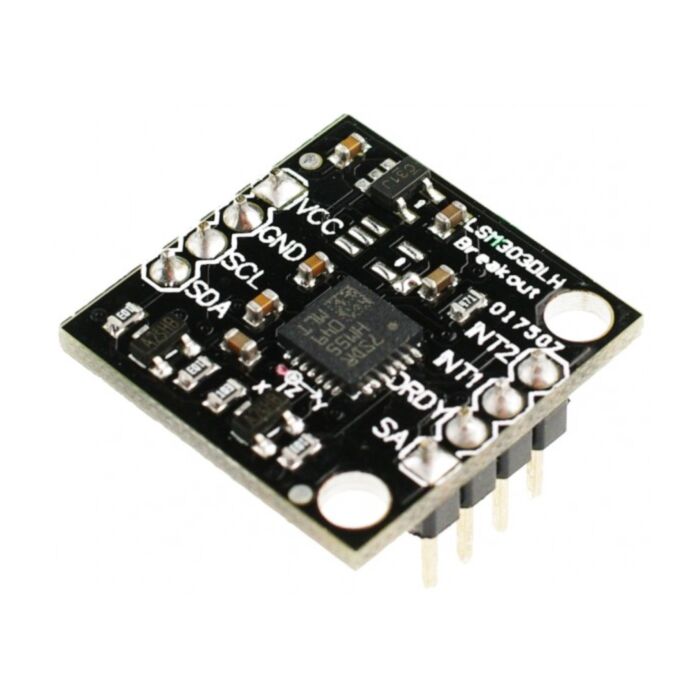

LSM303 Breakout Board - Tilt Compensated Compass
22.74 AUD

SKU: SEN0079

$22.74 AUD, inc GST
$20.67 AUD, exc GST
In stock, with a short lead time. 38 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 26th of Jul with Express Post within Australia.
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

The LSM303DLH is a triple axis accelerometer combined with a triple axis magnetic sensor.
This breakout board uses the LSM303DLH to give you the data you need to feed into a microcontroller and calculate tilt-compensated output.


Applications
  • Compensated compassing
  • Map rotation
  • Position detection
  • Motion-activated functions
  • Free-fall detection
  • Intelligent power-saving for handheld devices
  • Display orientation
  • Gaming and virtual reality input devices
  • Impact recognition and logging
  • Vibration monitoring and compensation

Specifications
  • Power supply: 3.6~8V DC
  • Chip: LSM303DLH
  • ±1.3 to ±8,1 gauss magnetic field full-scale
  • ±2 g/±4 g/±8 g dynamically selectable fullscale
  • 16-bit data out
  • I2C serial interface
  • 2 independent programmable interrupt
  • generators for free-fall and motion detection
  • Embedded self-test
  • Accelerometer sleep-to-wakeup function
  • 6D orientation detection
  • Dimensions: 20.5mmx20.5mm
  • Weight: 1g

Shipping list
  • LSM303 breakout board     x1
