LED Brightness Adjuster Kit

SKU: SPX-21226 Brand: Sparkfun

We've all been there; you load up your project with a bunch of LEDs, only to discover that none have the same brightnesses. Some are way too dim to see, wh...

$10.90 AUD, inc GST

$9.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 31 and Jan 03

Quantity Discounts:

10-25 $9.61 (exc GST)
25+ $9.42 (exc GST)

We've all been there; you load up your project with a bunch of LEDs, only to discover that none have the same brightnesses. Some are way too dim to see, while others require sunglasses to not be blinded! Even Sparkfun have experienced this problem with prototypes, so they recently standardized all resistor values for each of their LEDs. In the process, Sparkfun created this board to test each of their LEDs side by side. Sparkfun realized that customers might be interested in having this board to test their own LEDs, so Sparkfun added all the features they could think of!

The board is designed to slot into the power rails of a breadboard, so you can stack up to 10 boards next to each other. Each board has 5 different footprints for different sizes of LEDs (SMD and through-hole), but only one LED should be added to each board. A 10k linear potentiometer is used to adjust the LED brightness, with a 100 Ohm resistor in series to protect the LED from burning out. There are silkscreen labels around the potentiometer to indicate the approximate resistance, with a couple test points "R+" and "R-" to measure the exact resistance with a DMM.

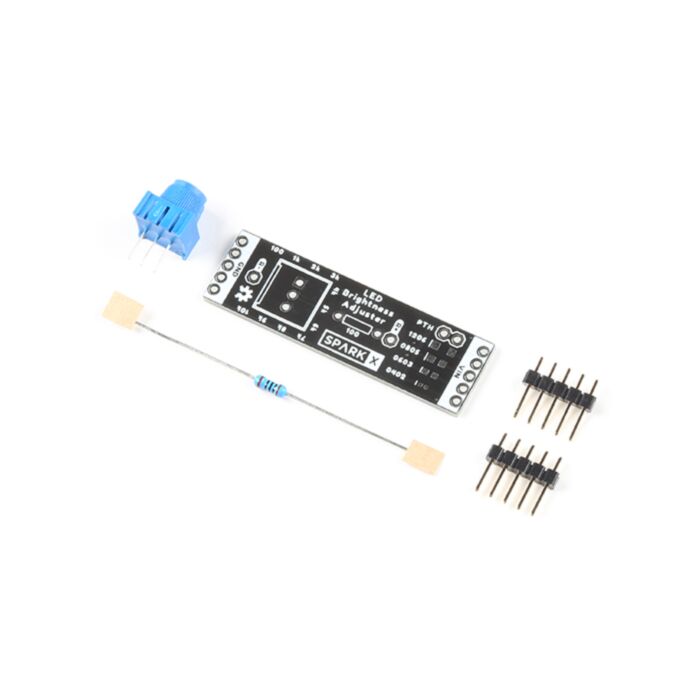

This is sold as a kit, which includes the PCB, a potentiometer, a 100 Ohm resistor, and headers for connecting into a breadboard. LEDs are NOT included with this kit, the idea is to test your own! However you're always welcome to pick up a few extra from our storefront if you need them. The kit does not come pre-assembled, so you'll need to break out the soldering iron. This would also be great for anyone starting to learn electronics as an introduction to soldering and Ohm's Law!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Includes

1x LED Brightness Adjuster PCB
1x 10k Blue Trimpot
1x 100 Ohm Axial Resistor
2x 5-pin Male Headers

Documents

This product is listed in:

Breakouts & Modules>LED Drivers
