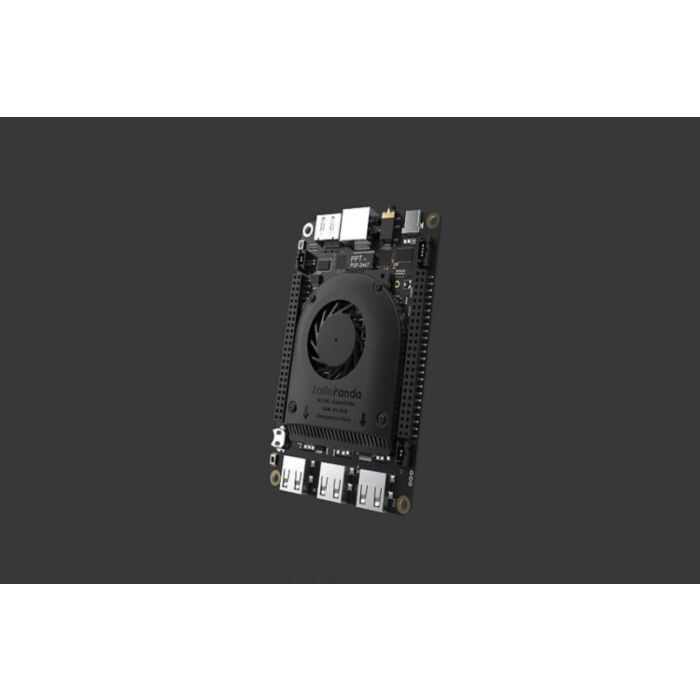

LattePanda Delta 4G/32GB – Tiny Ultimate Windows / Linux Device

SKU: DFR0543 Brand: DFRobot

Retired Product

Replaced by: SBC
This product has been replaced by: SBC
This product is no longer available. This page is only for reference.

This is LattePanda Delta Edition - Mathematical Character △; a triangle.

Windows 10 is preinstalled and deactivated. In our tests, Windows works as-normal with the exception of the activation desktop background (which can be removed by purchasing an activation license for Windows by following the prompts).

The Delta Edition uses an Intel 8th generation Celeron N4100 processor. This Celeron processor is the perfect choice for features and price as a main robotics controller, interactive project core, IoT edge device or AI brain. So LattePanda Delta is still x86 based SBC design. We have shrunken this computing monster from a laptop to the size of a phone.

Because we saw the different needs of users from our 1st Gen products.



We are shipping Windows 10 Pro this time but we have also added Linux Compatibility, Windows and Linux dual OS support.










The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.



FEATURES

  • Solid Spec and Extreme Design
  • Dual OS Support – Windows / Linux Both
  • Ultimate Networking on Cloud and Things
  • Up to 42 Extendable Interfaces bring Rich Playabilities
  • Ultra-Thin Design, Minimizing Space Occupation
  • Rebuild How to Code Efficiently with Multiple OS

Specification

  • CPU:Intel 8th Gen Celeron Processor N4100
  • Core:1.1-2.4GHz Quad-Core,Four-Thread
  • Benchmark (PassMark): Up to 1800+
  • Graphics:Intel UHD Graphics 600, 200-700MHz
  • RAM:4G LPDDR4 2400MHz Dual-Channel
  • Memory:32GB eMMC V5.0l
  • External Memory:
                1x M.2 B Key, PCIe 2x, Supports SATA SSD
                1x M.2 E Key, PCIe 2x,Supports USB2.0, UART, PCM
  • Connectivity: WIFI 802.11 AC, 2.4G & 5G
                Dual Band Bluetooth 4.2
                Gigabyte Ethernet
  • USB Ports: 3x USB 3.0 Type A
                1x USB Type C, supports PD, DP, USB 3.0
  • Display: HDMI Output
                Type-C DP Support
                Extendable eDP touch displays
  • Co-processor:Arduino Leonardo
  • GPIO & Other Features:2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC,Power Management,Extendable power button,everything you need
  • OS Support: Windows 10 Pro Linux Ubuntu

Documents

Parts List

  • LattePanda Delta 432  x1
  • Active cooling fan x1
  • 45w PD Power adapter x1
