Kitronik Motor Driver Board for the BBC micro:bit - V2.1

SKU: CE05935 Brand: Kitronik

Retired Product

Replaced by: CE07359

This product has been replaced by: CE07359
This product is no longer available. This page is only for reference.

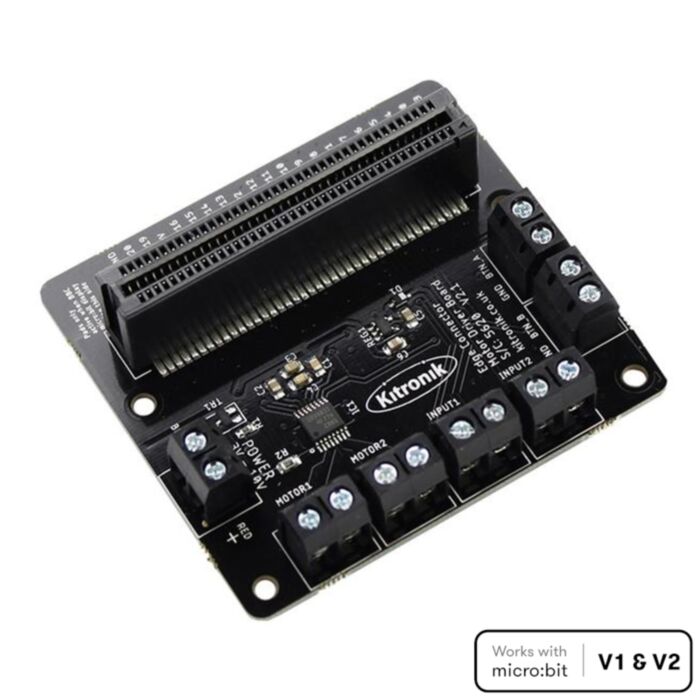

This motor driver board for the BBC micro:bit allows two motors to be driven simultaneously with forward, reverse & stop control, making it ideal for designs such as buggies. It is based on the DRV8833 motor driver IC, which has built-in short circuit, over current and thermal protection.

The board includes an integrated Edge Connector slot for your BBC micro:bit to easily slot into. It also features external connections to the button A and button B inputs. This allows additional switches/inputs to be connected to the motor driver board and the state of these can then be read by the BBC micro:bit.

There are 2 additional inputs/outputs. These can be used for connecting a range of parts and can be used in either digital or analogue modes.

The board also produces a regulated 3V supply that is fed into the 80 way connector to power the inserted BBC micro:bit, removing the need to power the BBC micro:bit directly

The board has been designed so that the BBC micro:bit can be inserted either way around (facing forward or backwards) however if you wish to use the broken out pins the LED matrix on the BBC micro:bit must be facing them.

Features

Works with both the micro:bit V1 and micro:bit V2
Drive 2 motors with full forward, reverse and stop control.
Terminal blocks for easy connection of motors and inputs.
4 inputs (2 analogue inputs and 2 provide external connections to Buttons A and B as inputs).
Includes Edge Connector for the BBC micro:bit to slot into.
Provide regulated power to the BBC micro:bit.
Access the other BBC micro:bit pins easily and conveniently.
Ideal for designs such as buggies and other robotics projects.
Operating Voltage of 3V to 10V.

Contents

1 x Edge Connector Motor Driver Board for the BBC micro:bit - V2.1

Dimensions

Length: 67mm.
Width: 61mm.
Height: 18mm.

Requires

1 x BBC micro:bit.
3V - 10V Power Supply.
2 x DC Motors (that are compatible with the power supply used).
1 x Flat-headed Terminal Screwdriver.
