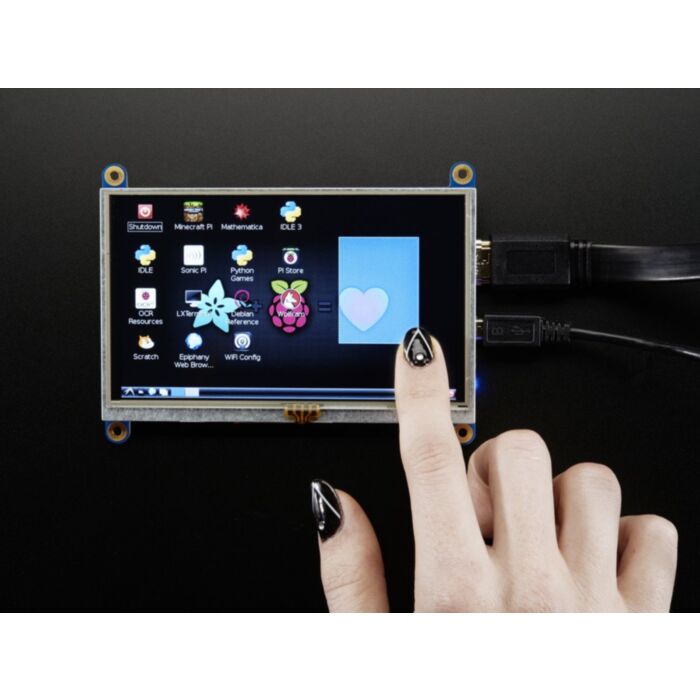

HDMI 5 800x480 Display Backpack - With Touchscreen
Available with a lead time
Expect dispatch between Dec 02 and Dec 06
Quantity Discounts:
- 5-10 $139.59 (exc GST)
- 10+ $135.23 (exc GST)
Its a mini panel-mountable HDMI monitor with a built-in touchscreen! So small and simple, you can use this display with any computer that has HDMI output, and the shape makes it easy to attach to a case or rail. This backpack features the TFP401 for decoding video, and includes the attached display so its plug-n-play.
The TFP401 is a beefy DVI/HDMI decoder from TI. It can take unencrypted video and pipe out the raw 24-bit color pixel data - HDCP not supported! The 5" display is 800x480 resolution, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk.
You can even power the entire display from a USB port. With the default 5" 800x480 display and 50mA backlight current, the current draw is 500mA total. You can reduce that down 370mA by running the backlight at half-brightness (25mA). With the backlight off, the decoder and display itself draws 250mA. If you want more backlight control, there's a PWM input, connect that to your microcontroller or other PWM output and you can continuously dim the backlight as desired.
Adafruit have two versions, one is video only and one is video+touch. This version has touch screen capability. The touch screen shows up as a USB mouse so no special drivers needed. Adafruit have tested it sucessfully on Mac, Windows, and Debian Linux (Raspbian on a Raspberry Pi). Other Linux distributions may or may not work, but if you're running Linux you're probably used to that. They also noted it does not work with a Raspberry Pi + Windows 10 IOT yet.
In particular, we suggest it for use with single board computers (or desktop/laptops!) with DVI/HDMI output like the Raspberry Pi or BeagleBone Black. You can power the driver over USB as long as your computer can supply 500mA on the USB port, and then feed it video via the HDMI port. Please note the TFP401 decoder chip does not contain a video scaler, it will not resize/shrink video!
PLEASE CHECK OUT THIS TUTORIAL ON HOW TO SET UP THE RESOLUTION WHEN USING WITH A RASPBERRY PI!
This product does not include an HDMI or USB cable (power supply). Use any HDMI for video, and any micro-B USB cable to power the display.
Technical Details
- Dimensions: 124mm x 76mm x 7mm / 4.9" x 3.0" x 0.3"
- Weight: 106g
- Datasheets and CAD files in tutorial download page
