HCR-A Mobile Robot Platform with Omni Wheels

SKU: ROB0124 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

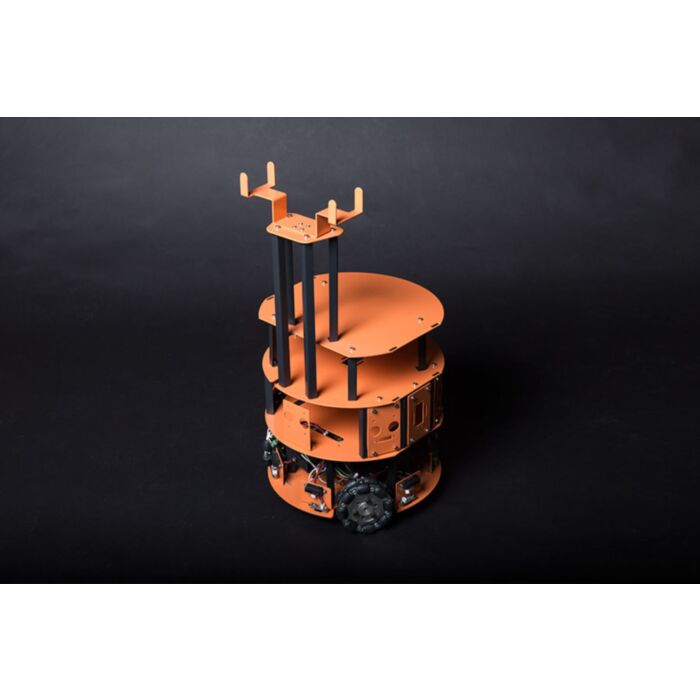

HCR (Home Care Robot) with Omni wheels is a full metal open source mobile robot research platform designed for robotics research and service robot application development.

Same as previous generations, the structure of the HCR is divided into 3 layers, each with slots for installing distance sensors, servos or cameras. There is also plenty of space for other expansions modules. More than that, equipped with 3 high torque Omni wheels with encoders, it is capable of all-direction pinpoint transitional motions and turning motions.

The new HCR is compatible with a wide range of development tools including "Arduino", "Raspberry Pi" , "LattePanda", allowing functions such as line tracking, obstacle avoiding or graphical based interaction. With HCR, you can turn anything into mobile.

Note:
1.The platform is sold in kit, further assembly will be needed.
2.Kit contains all structural parts including metal sheets parts, screw sets, switches and sockets (refer to packing list for more details).
3.Recommended component list and circuit diagram is included in the installation manual, user may add other items based on demand.

Specification

Structure: 4+1 Full Metal Structure
URM04 Ultrasonic Sensor Module Installation Slot: 6
GPY0A21 Inferred Sensor Module Installation Slot: 12
Greyscale Sensor Module Installation Slot: 6
Xbox Kinect Camera Mount: 1
Servo Installation Slot: 4
PC installation Slot: 2
Motor type:【http://www.dfrobot.com/index.php?route=product/product&product_id=1210&search=122&description=true#.V1VIdfmqqAw 12V DC Motor 122rpm w/Encoder】
Quantity of Motor: 3
Quantity of Driving Wheel: 3
Driving Wheel diameter: 100mm
Dimension (after assembly): 31*31*60 cm/ 12.2*12.2*23.6 inches
Max Load: 10kg

Documents

Parts List

HCR Mobile Platform with Omni Wheels x1
