Grove - Offline Voice Recognition Module

SKU: SS107020149 Brand: Seeed Studio
Explore the Grove - Offline Voice Recognition Module, a standalone solution for IoT voice control with 150 pre-set commands, FFT Accelerator, and multiple interfaces including UART, SPI, and I2C. Ideal for smart home and automotive applications, this module operates independently of internet connectivity, enhancing project versatility and reliability.
$35.40 AUD, inc GST
$32.18 AUD, exc GST

Quantity Discounts:

  • 10-25 $30.89 (exc GST)
  • 25+ $29.93 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Online Voice recognition modules require a reliable internet connection to generate responses and are not independent of the Microcontroller/Processor controlling them. While one can create an offline voice recognition module using a compatible processor like RaspberryPi, and train a custom neural network to do this, it is not feasible for battery-operated edge devices

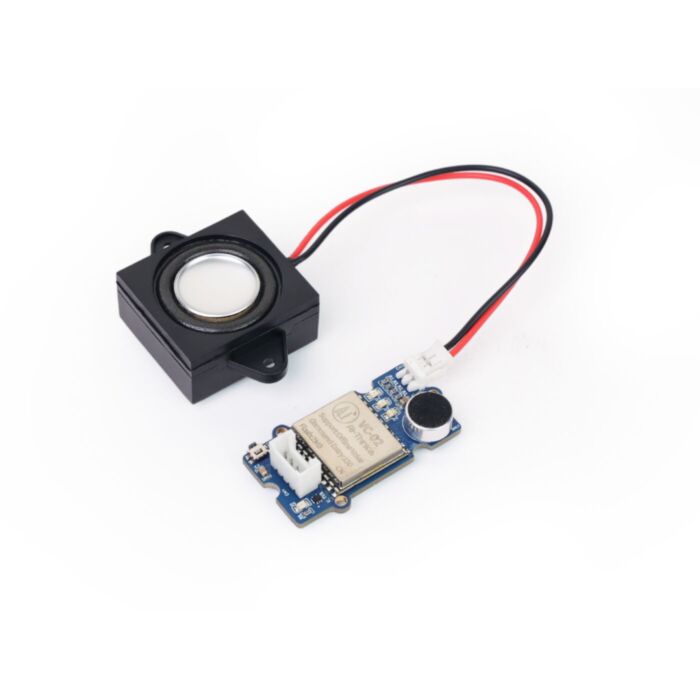

This Grove-Offline Voice Recognition Module is a truly offline voice recognition module with 150 pre-programmed voice commands, which can be communicated through UART. It features connections for the speaker and microphone, along with indicator LEDs. The power supply to the module is ESD-protected, adding more safety to the module. It is a perfect low-cost solution for adding voice control to your IoT projects!

Features

  • FFT Accelerator: Supports up to 1024 points of complex FFT/IFFT operations or 2048 points of real FFT/IFFI;
  • Rich Peripherals: Support 1 analog Mic input and 4 digital Mic inputs and dual-channel DAC outputs;
  • Built-in voltage conversion:Supports 3.6V to 5V range power inputs and built-in 5V to 3.3V and 3.3V to 1.2V LDOs to power the chip;
  • Smart Detection: Built-in POR (Power on Reset), Low Voltage Detection and Watchdog;
  • Rich Interface: 1 full-duplex UART up to 3Mbps and supports SPI, I2C, ADC, and PWM interfaces.

Specifications

Specification

Details

Size

18*17*3.2mm

Operating Temperature

-40°C~85°C

Storage

-40°C~125°C, <90%RH

Power supply range

Supply voltage 3.6V-5V, supply current >500mA

Supported interfaces

UART/I2C/PWM/SPI/GPIO

Number of available IO ports

10

Serial Rate

Default 115200 bps

SPI Flash

2MB (internal)

Hardware  Overview

Parts List

Offline Voice Recognition Module

x1

Speaker

x1

Grove Cable

x1


Product Wiki

Offline Voice Commands

This product is listed in:

Sensors>Voice Recognition
