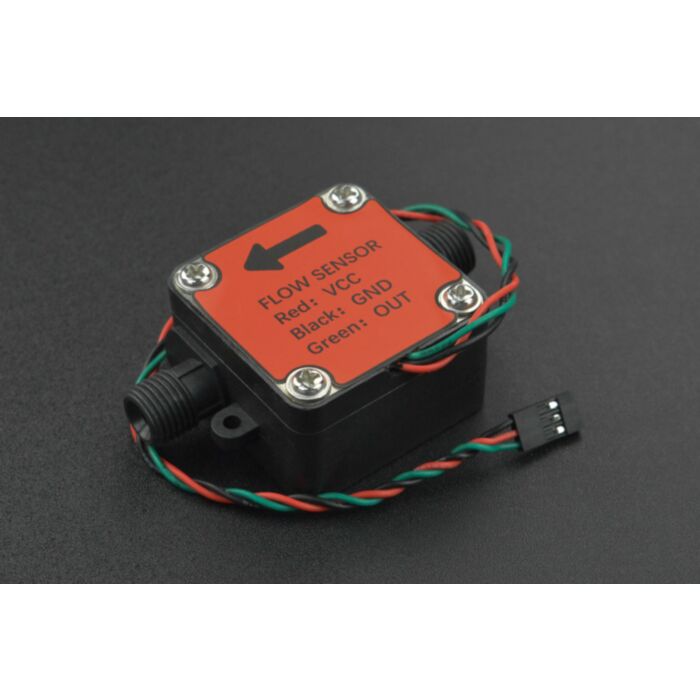

Gravity: Liquid Flow Sensor (G1/4)

SKU: SEN0549 Brand: DFRobot

This Gravity: electromagnetic-based liquid flow sensor can measure the flow of various liquids like water, diesel, engine oil, milk, paint, detergent and...

$33.40 AUD, inc GST

$30.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $29.45 (exc GST)
25+ $28.85 (exc GST)

This Gravity: liquid flow sensor is designed based on the electromagnetic principle. It adopts an O-ring rubber seal and uses silicone sealant at the outlet end to strength water-resistance. With high anti-interference and anti-impact, the sensor offers reliable performance and long service life. Also, it is designed with G1/4 thread connectors for easy installation.

The sensor can be used with microcontrollers like Arduino UNO to measure the flow of liquids with high concentration and low viscosity like water, diesel, engine oil, milk, paint, detergent, honey, etc. (no impurity in liquid)

Gravity: Water Flow Sensor (G1/4)

Features

Gravity connector, easy to wire
Wide voltage of 3.5-24V
Supports measuring liquid with high concentration and low-viscosity
RHOS compliant

Applications

Measure the flow of liquids with high concentration and low viscosity

Specification

Operating Voltage: DC3.5-24V
Operating Current: =10mA(DC5V)
Output: NPN Pulse signal
Pipe Diameter: G1/4
Thread Outer Diameter: 13mm
Thread Length: 10mm
Water Pressure Resistance: =1.0MPA
Insulation Resistance: >100MO
Error: ±1%(0.3-5L/min)
Output Pulse High Level: >DC4.7V(Input voltage DC5V)
Output Pulse Low Level: <DC0.5V(Input voltage DC5V)
Output Pulse Duty Ratio: 50%±10%
Flow-Pulse Correlation: 1L=540 pulses
Operating Temperature Range: -10°~70°C
Operating Humidity Range: 35%~90%RH(No condensing)
Storage Temperature: -25°~+80°C
Storage Humidity: 25%~95%RH
Dimension: 80*47*30mm/3.15*1.85*1.18”

Documents

Product wiki

Parts List

Gravity: Liquid Flow Sensor (G1/4) x1

This product is listed in:

Sensors>Liquid & Flow
