Gravity: GR10-30 Gesture Sensor (UART & I2C, 12 Gestures, 0~30cm)

Skip to the beginning of the images gallery

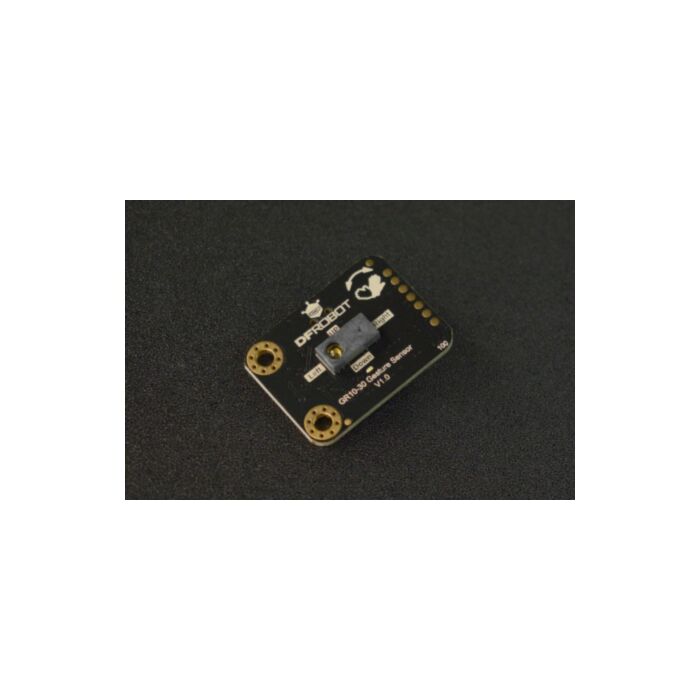

Gravity: GR10-30 Gesture Sensor (UART & I2C, 12 Gestures, 0~30cm)

SKU: SEN0561 Brand: DFRobot

Bring gesture recognition technology to projects with the GR10-30 hand gesture recognition and detection control sensor. Recognize 12 hand gestures with...

$37.70 AUD, inc GST

$34.27 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 10 and Dec 16

Quantity Discounts:

10-25 $32.90 (exc GST)
25+ $31.87 (exc GST)

This GR10-30 gesture sensor is capable of recognizing 12 hand gestures: move up, down, left, right, forward, backward, rotate clockwise and counterclockwise, rotate clockwise and counterclockwise continuously, hover, and wave. And users can set parameters such as the gesture trigger distance, the hand rotation angle, the hovering time that can be recognized, and the size of the recognition window to get more accurate results.

The GR10-30 features stable performance and high accuracy within a sensing distance of up to 30 cm. Meanwhile, it provides two interrupt pins for indicating if a gesture trigger occurs and if an object enters the recognition range.

The sensor is well suited to non-contact operation applications like gesture remote controllers, robot interaction, human-machine interface control, lighting control, and gesture game machine.

Figure: Wiring Diagram of Arduino and Gravity: GR10-30 Gesture Sensor

Features

Maximum recognition distance of 30cm

Capable of recognizing 12 gestures

Configurable recognition threshold & other parameters

Support UART & I2C communication

Applications

Gesture Remote Controller

Robot Interaction

Human-machine Interface Control

Specification

Supply Voltage: 3.3V to 5V

Operating Current: <10mA

I2C Address: 0x73

Serial Baud Rate: 9600

Maximum Recognition Distance: 30cm

Operating Temperature:0°C to 70°C

Operating Humidity:5%RH to 85%RH

Dimension:22×30mm/0.87×1.18"

Documents

Product wiki

Modbus RTU Protocols

Parts List

Gravity: GR10-30 Gesture Sensor × 1

Gravity-4P I2C/UART Sensor Cable × 1

This product is listed in:

Sensors>Biometric
