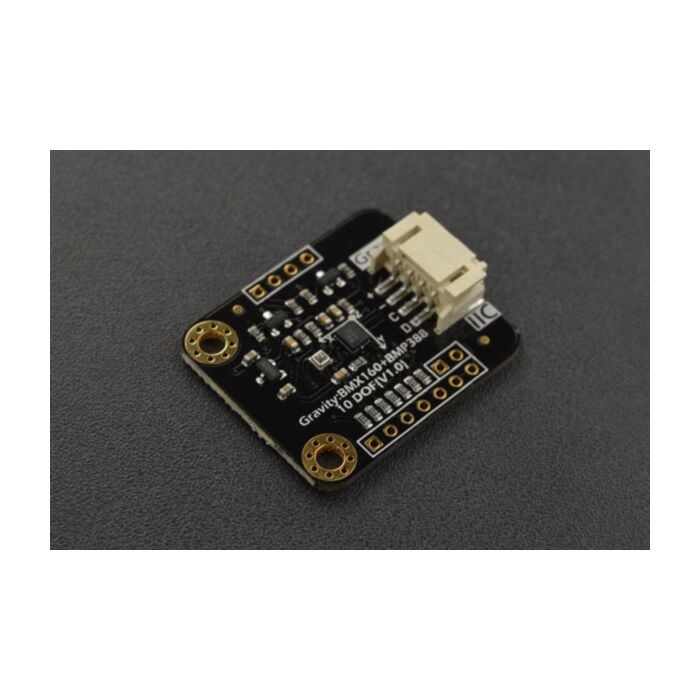

Gravity: BMX160+BMP388 10 DOF Sensor

SKU: SEN0252 Brand: DFRobot

The BMX160 9-axis absolute orientation sensor from Bosch Sensortec is an ideal solution for applications that face strict constraints of board space, power consumption...

$34.85 AUD, inc GST

$31.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 23

Quantity Discounts:

10-25 $30.73 (exc GST)
25+ $30.10 (exc GST)

Introduction

The BMX160 9-axis absolute orientation sensor from Bosch Sensortec is an ideal solution for applications that face strict constraints of board space, power consumption and appearance, especially for wearable device like smart watches or augmented reality glasses. This BMX160 sensor is the smallest 9-axis sensor in the industry. It comprises an accelerometer, gyroscope and geomagnetic sensor in a single package, and features less than 1.5mA power consumption. Combined with BSX sensor data fusion software library of Bosch Sensortec, the sensor performance can be further improved.

BMP388 is a high performance barometric pressure sensor with compact body, high resolution, and the smallest size in same series. The BMP388 delivers outstanding altitude stabilization in drones, where accurate measurement of barometric pressure provides the essential altitude data for improving flight stability and landing accuracy.

This module is a combination of BMX160 and BMP388 from DFRobot, which is perfectly suitable for using in drone applications to measure height, attitude and orientation.

Features

Low Power
Low Noise
High accuracy
Small in Size
Acceleration Measurement
Angular Velocity Measurement
Barometric Pressure Measurement
Temperature Measurement

Specification

BMX160 9-axis Sensor

Accelerometer: ±2g/±4g/±8g/±16
Gyroscope: ±125°/s~2000°/s
Geomagnetic Sensor: ±1150uT(x-,y-axis);±2500uT(z-axis)
Resolution: 0.3µT

BMP388 Barometric Pressure & Temperature Sensor

Operation Range: 300-1250 hPa
Relative Accuracy Pressure: ±0.08 hPa (equivalent to ±0.66m @700-900hPa, 25°C - 40°C)
Absolute Accuracy Pressure: ±0.5 hPa(0°C - 65°C@300-1100hPa)
Temperature Coefficient Offset: ±0.75 Pa/K(-20°C - 65°C@700-1100hPa)
Absolute Accuracy Temperature: ±0.5°C(@0°C - 65°C)

Operating Temperature: -40 °C ~ 80°C (more accurate in 0°C - 65°C)

Dimension: 27mm x 32mm/1.06 x 1.26”

Documents

Product wiki

Parts List

Gravity: BMX160+BMP388 10 DOF Sensor x1
PH2.0-4P Connector x1
