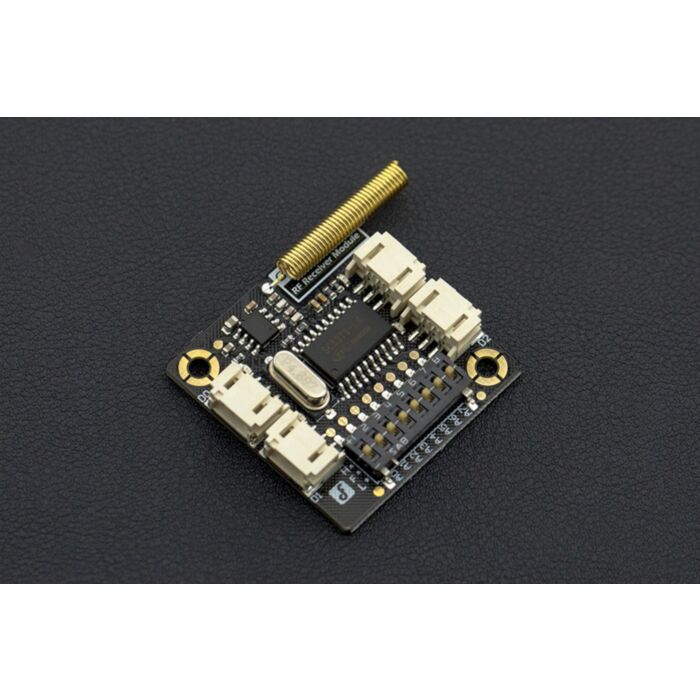

Gravity: 315MHZ RF Receiver Module

SKU: TEL0112

$11.00 AUD, inc GST
$10.00 AUD, exc GST

More Views

Gravity: 315MHZ RF Receiver Module
10.9977 AUD

SKU: TEL0112

$11.00 AUD, inc GST
$10.00 AUD, exc GST
In stock, with a short lead time. 94 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.

INTRODUCTION

The 315MHz RF receiver module is widely used in the field of vehicle Telecontrol, access control system, identification, etc. Compared with traditional wired communication, RF radio has advantage of higher flexibility and lower maintenance cost.

DFRobot 315MHz RF receiver module using SC2272-L4 low power decoder chip, with 8-bit three-state address coding switch, each one has three states: high level, low level, floating empty, so it supports up to 6,561 of the coding address. Modules can be used with SC2260, SC2262, PT2260, PT2262 and other coding chips, recommend our Remote Wireless Keyfob (315MHz)

APPLICATIONS

  • Home Car Safety System
  • Garage control
  • Remote Control Toys
  • Remote Control fan
  • SPECIFICATION

  • Power Supply: 3.3/5v (MAX5.5V)
  • Module Interface: PH2.0-3pin
  • Operating Frequency: 315MHz
  • Modulation Mode: Ask
  • Demodulation Mode: Superheterodyne type
  • Sensitivity: Typical -108 dBi
  • Transfer Rate: Maximum 9.6kbps
  • Receive bandwidth: ±1.25MHz (6dB)
  • Antenna Impedance: 50 ohms
  • RF chip: LR480
  • Decoding Chip: SC2272-L4 latch type
  • Transmission Distance: 50 m (5V Power)
  • Operating Temperature: 0~+70℃
  • Weight: 10g
  • DOCUMENTS

    Product WIKI
    More Documents

    SHIPPING LIST

    Gravity: 315MHZ RF Receiver Module x1
