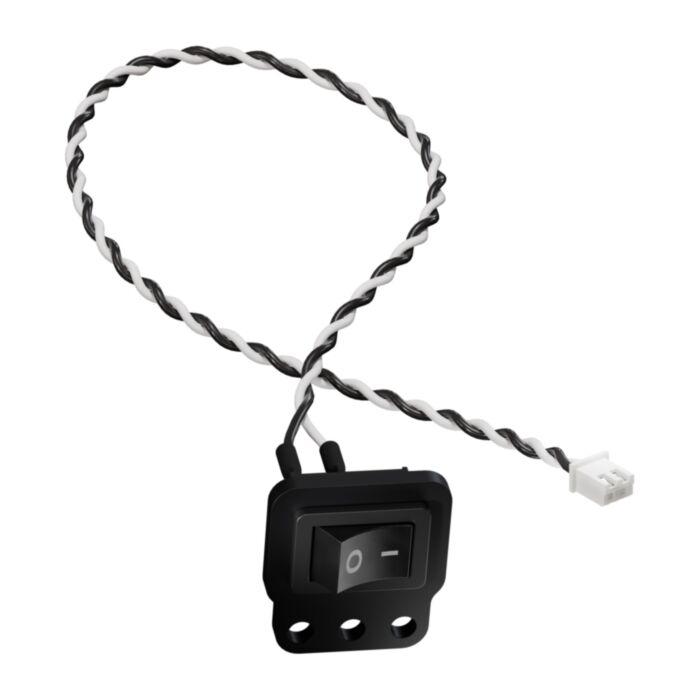

Auxiliary Switch for goBILDA® Smart Dock (with Mounting Plate)

SKU: GB-3103-0004-0001 Brand: goBilda

This remote switch is useful when your battery is nestled down inside your project. The switch simply plugs into the side of the

$17.39 AUD, inc GST

$15.81 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 13

Quantity Discounts:

10-25 $15.34 (exc GST)
25+ $15.02 (exc GST)

This remote switch is useful when your battery is nestled down inside your project. The switch simply plugs into the side of the goBILDA® Smart Dock via the auxiliary “SWITCH” connector and allows you to turn the Dock’s power on and off from afar.

A mounting plate with holes on the goBILDA® 8mm linear pattern is included to help you implement this switch directly into the structure of your project!

If you're using the switch without the included mounting plate, the spring-tabs of the panel mount switch allow the switch to securely snap down in a rectangular cutout for a clean and finished appearance. While that rectangular cutout will always be 12.9 - 13.1mm wide, its length required will vary according to the thickness of your material:

18.9 - 19.1mm length for 0.7 - 1.25mm thick
19.1 - 19.2mm length for 1.25 - 2.0mm thick
19.3 - 19.4mm length for 2.0 - 3.0mm thick

Downloads

STEP File

Specs

Weight	9.8g (with Mounting Plate)
Wire Length	300mm
Wire Guage	22AWG
Jacket Material	Silicone
Wire Material	Copper
Max Voltage	250VAC/VDC
Max Current	3A (NOTE: When connected to the goBILDA® Smart Dock via the Dock's AUX port, the Switch is not subjected to the current that is drawn from the battery.)
Connector Style	2- Pos JST XH (Male Housing, Female Contact)

This product is listed in:

goBILDA>ELECTRONICS>Wiring>Shop by Connector Style>Connector Style: JST XH Series
