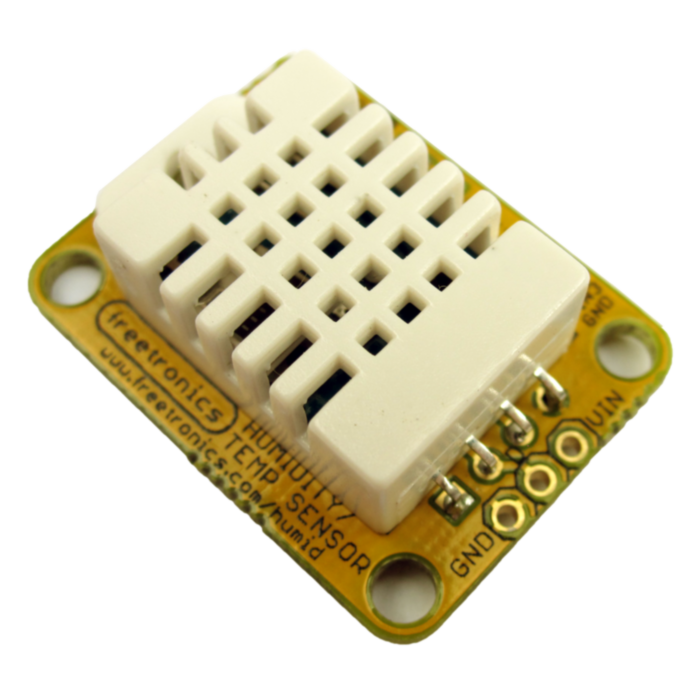

Freetronics Humidity and Temperature Sensor Module
Retired Product
Replaced by: CE05172This product is no longer available. This page is only for reference.
Measure temperature and relative humidity using a simple interface that requires just three wires to the sensor: GND, power, and data. Supported by an Arduino library that makes it very easy to read values into your project, so with a single I/O line from your microcontroller you can read both temperature and humidity.
Click here for the Temperature / Humidity Sensor Module Quickstart Guide.
Features:
- -40°C to +80°C temperature range with +/-0.5°C accuracy
- 0-100% relative humidity with 2-5% accuracy
- 0.5Hz sample rate (one sample every 2 seconds)
- 3 to 5V operation
- Power consumption just 4.3mA during reads, even less when idle
- Blue power LED
- Dimensions: 31(W) x 23(H) x 4(D)mm
The module includes mounting holes suitable for M3 or 1/8" bolts, and a flat rear face so you can easily glue it to any surface.
Resources
- Tutorial, Getting Started Guide
- HUMID Schematic and Reference (PDF)
- DHT22 Humidity/Temperature Sensor Datasheet (PDF)
- Discuss in the forum
- Design files
SKU:
- HUMID (94)
