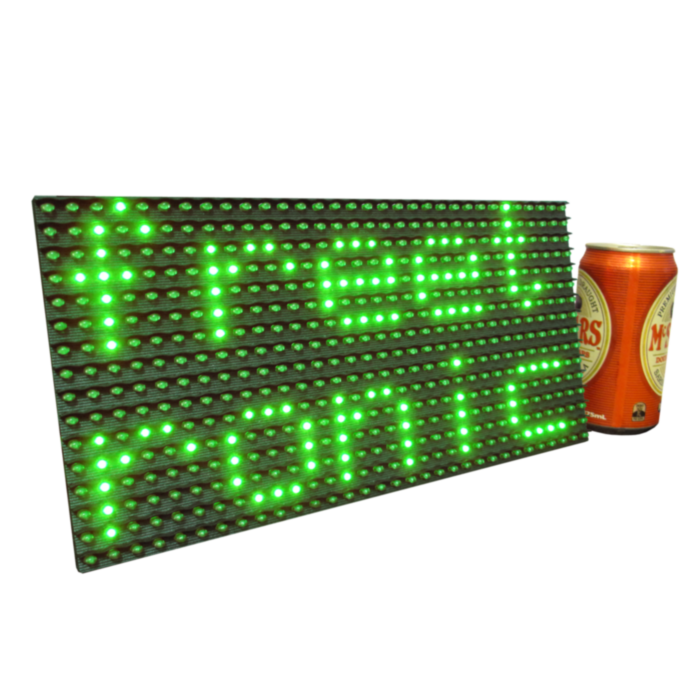

Freetronics DMD: Dot Matrix Display 32x16 Green

SKU: CE04539 Brand: Freetronics

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

A huge dot matrix LED panel to connect to your Freetronics Eleven, EtherTen and more! This large, bright 512 LED matrix panel has on-board controller circuitry designed to make it easy to use straight from your board. Clocks, status displays, graphics readouts and all kinds of impressive display projects are easy to create using this display.

The photos don't do this display justice: it's stunningly bright, so put on your sunglasses before you fire it up!

To make it really easy to get started we include a breakout board and ribbon cable along with the display module, so you can plug it straight in to an Arduino-compatible board and start playing with it right away. Here's an example video of the Red version:

Features:

32 x 16 high brightness Green LEDs (512 LEDs total) on a 10mm pitch
5V operation
Viewable over 12 metres away
Tough plastic frame
Controller ICs on board, simple clocked data interface
Arduino compatible library, graphics functions and example support
Dimensions: 320(W) x 160(H) x 14(D)mm (30mm(D) including rear connectors)

Available here now or at a Freetronics reseller near you in red, blue, white, yellow, and green.

Resources

Dot Matrix Display Quickstart Guide (1MB PDF)
Using your Dot Matrix Display
