Freetronics 8mm RGB LED (Common Cathode) 8-pack suitable for 4x4x4 RGB LED Cube

SKU: CE04523

$7.95 AUD, inc GST
$7.23 AUD, exc GST

More Views

Freetronics 8mm RGB LED (Common Cathode) 8-pack suitable for 4x4x4 RGB LED Cube
7.95 AUD

SKU: CE04523

$7.95 AUD, inc GST
$7.23 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 15 units dispatch in 5 to 9 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 26th of Jul with Express Post within Australia.


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If you have damaged your 4x4x4 RGB LED Cube during assembly or need to replace some LEDs then order this pack to repair your cube. We also offer the horizontal and vertical plane PCBs in separate packs.

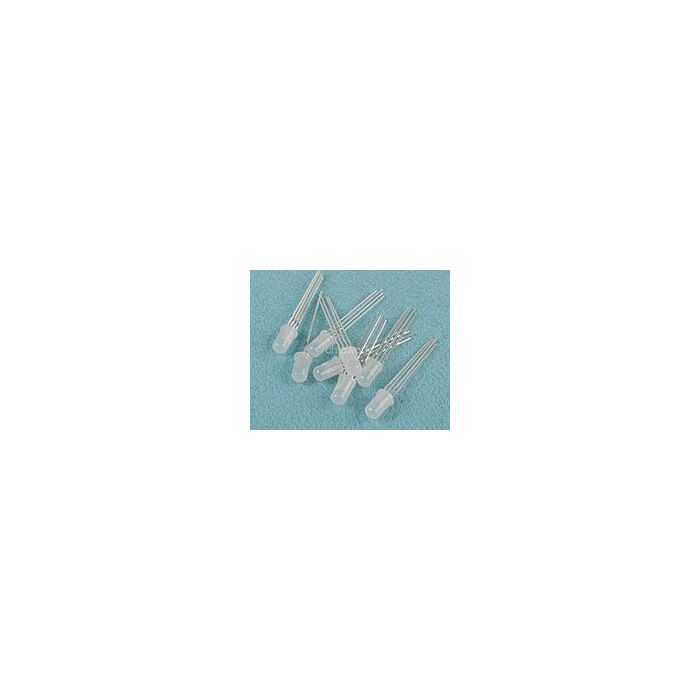

Huge 8mm RGB (Red Green Blue) LEDs in a 4-pin package with a common cathode (negative) connection. Great for building colourful displays or status indicators that change colour! Comes in a handy 8-pack.

The "cathode" is the negative side of the LED, so having a common cathode means you can connect the cathode pin to 0V (GND) and then switch on the individual RGB elements by connecting their pins to +V using current limiting resistors. Using PWM pins on your Arduino you can then blend the red, green and blue colours together to create any colour you like.

Note: We also have "common anode" LEDs available.

The pack contains the following items:

  • 8 x RGB LEDs (note: common cathode)


  • Diameter: 8mm
  • Body: diffused
  • Forward current: 30mA
Red Green Blue
Forward Voltage 2.0-2.2V 3.1-3.3V 3.1-3.3V
Wavelength 622-625nm 518-521nm  467-470nm

  • CUBEL (4)
