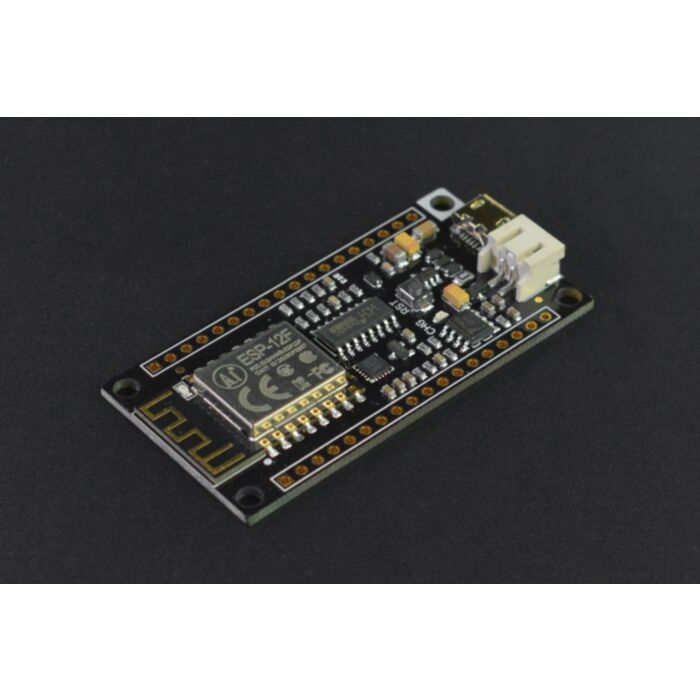

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

SKU: DFR0489 Brand: DFRobot

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated...

$14.50 AUD, inc GST

$13.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 18th of Mar

Quantity Discounts:

10-25 $12.65 (exc GST)
25+ $12.25 (exc GST)

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC and multiple interfaces such as HSPI, UART, PWM, I2C and I2S. In DTIM10, the full power consumption to maintain WiFi connection reached to 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage. Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. Operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of board.

FireBeetle Products

NOTE: There still remains some bugs to be detected and fixed by developers. In some cases some peripherals may not work perfectly by embedding Arduino sample codes in ESP8266. Much more functions implemented in Arduino are still under development and improvement. An alternative way is to change development tool such as RTOS and MicroPython towards a more operating-friendly experience in some conditions.

Features

Compatible with FireBeetle series
Compatible with Arduino programing
Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
Support RTOS SDK in Linux, Arduino IDE and Micropython.
Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)
Support TCP / IP
Support Lithium Battery (The Maximum charge current: 500mA)
Support Low Power Consumption
Support OTA Updating
Support STA/AP/STA+AP

Specifications

Operating Temperature: -40°C ~ +85°C
Operating Voltage: 3.3V
Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)
Microcontroller: Tensilica L106 (32-bit MCU)
Clock Speed: 80MHz (Maximum: 160MHz)
SRAM:50KB
External Flash Memory: 16MB
DC Current in the Low-Power-Consumption: 46uA
Average Operating Current: 80mA
Maximum Discharging Current: 600mA (LDO-3.3 Output)
Maximum Charging Current: 500mA
Digital Pin x10
Analog Pin x1
SPI interface x1
I2C interface x1
IR interface x1
I2S interface x1
Interface: XH2.54mm Pin (No soldering default)
In Combination of Wi-Fi MAC/ BB/RF/PA/LNA
WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi
Dimension: 58 × 29(mm)
Operating Temperature: -10°C ~ +55°C
Mounting Hole Dimension: 53 x 24(mm)
Weight: 24g

Documents

Parts List

FireBeetle Board-ESP8266 ×1
18pin-2.54mm ×2
18pin-2.54mm Female Holder ×2
