FireBeetle ESP32-E IoT Microcontroller (Wi-Fi / Bluetooth)

SKU: CE08179 Brand: Pimoroni

Retired Product

Replaced by: DFR0654

This product has been replaced by: DFR0654
This product is no longer available. This page is only for reference.

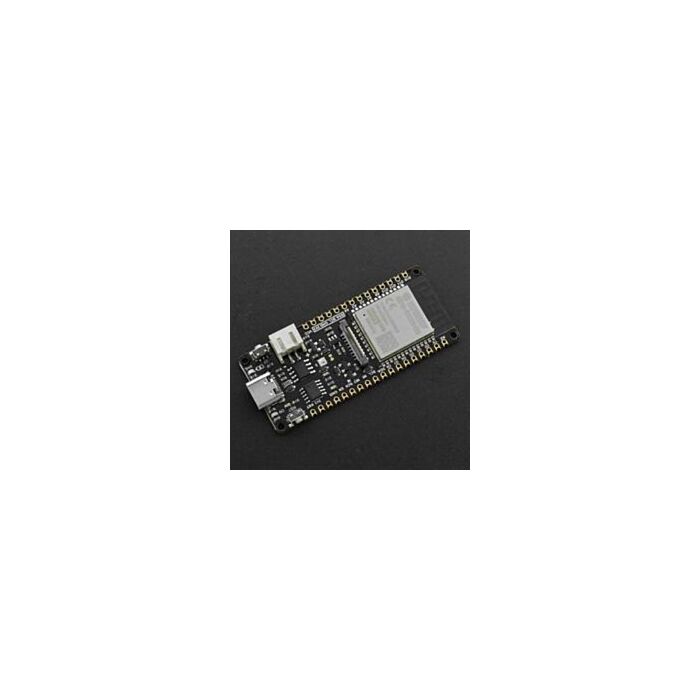

An ESP-WROOM-32E-based dual-core microcontroller board with lipo battery charging and ultra low power consumption, especially designed for IoT and perfect for wirelessly adding sensors to home automation networks.

The new ESP32-E FireBeetle supports WiFi and Bluetooth dual-mode communication, has ultra low power consumption and even includes an on-board charging circuit so you can power it with a lipo battery (and charge it over USB-C). It's easily programmable via Arduino IDE, and ideal for smart home IoT, industrial IoT applications, wearable devices, and so on. You can easily create your own IoT smart home system when connecting it with an IoT platform like IFTTT or Home Assistant.

FireBeetle ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming very soon, with detailed online tutorials and application cases. The castellated design makes it possible to embed on another PCB, saving costs and time for building prototypes.

What's the difference between FireBeetle ESP32-E and FireBeetle ESP32?

ESP32-E uses a data encryption chip to protect program security
ESP32-E is equipped with a DFRobot GDI (General Display Interface) to connect screens like DFR0664/DFR0649/DFR0665/DFR0669
Software are ecologically compatible with both ESP32 and ESP32-E, except for minor changes in pin mapping
ESP32-E cannot use an expansion board for ESP32 V4.0

SKU	DFR0478	DFR0654
Microcontroller	ESP32-D	ESP32-E
Power Supply Interface	Micro USB	USB-C
USB to UART	CH340C	CH340K
Operating Voltage (V)	3.3V	3.3V
Flash	16MB	4MB
SRAM (KB)	520k	520k
Analog Pins	5	5
Digital Pins	10	10
UART	1	1
I2C	1	1
SPI	1	1
Side Key	Ã—	v
RGB_LED	Ã—	v
DisplayPort (GDI)	Ã—	v
Stamp Holes	Ã—	v
Silkscreen	underside	two-sided
Mount Hole Size (mm)	3.5	2
Dimension (mm)	29*58	*25.460**
Weight (g)	24 g	23g

Espressif has recently released one wafer-level change on ESP32 Series of products: ESP32-E. Below are the main design changes in ESP32-E Series of chips:

PSRAM Cache Bug Fix: Fixed â€œWhen the CPU accesses the external SRAM in a certain sequence, read & write errors can occurâ€.
Fixed â€œWhen each CPU reads certain different address spaces simultaneously, a read error can occur.â€
Optimized 32.768 KHz crystal oscillator stability, the issue was reported by client that there is a low probability that under ESP32-D hardware, the 32.768 KHz crystal oscillator couldnâ€™t start properly.
Fixed Fault injection issues regarding secure boot and flash encryption are fixed.
Improvement: Changed the minimum baud rate supported by the CAN module from 25 kHz to 12.5 kHz.

Features

ESP32 Dual-core low power maincontroller, 10uA power consumption
WiFi Bluetooth 4.0 Dual-mode Module
GDI Display Port, easy to connect
Onboard Charging Circuit and PH2.0 lithium Battery Interface

Specification

Operating Voltage: 3.3V
Input Voltage: 3.3V~5.5V
Support Low-Power: 10uA
Max Discharge Current: 600mA@3.3V LDO
Max Charge Current: 500mA
Support USB Charging
Processor: Tensilica LX6 dual-core processor (One for high-speed connection; one for independent application development)
Main Frequency: 240MHz
SRAM: 520KB
Flash: 32Mbit
Wi-Fi Standard: FCC/CE/TELEC/KCC
Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n,speed up to 150 Mbps), A-MPDU and A-MSDU Aggregation, support 0.4us guard interval)
Frequency Range: 2.4~2.5 GHz
Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard compliant
Bluetooth Audio: CVSD and SBC audio
Operating Current: 80mA(Average)
Support Arduino download with one-key
On-chip Clock: 40MHz crystal, 32.768KHz crystal
Digital I/O x10(Arduino default)
Analog Input x5(Arduino default)
SPI x1(Arduino Default)
IIC x1(Arduino Default)
I2S x1(Arduino Default)
RGB_LED: 5/D8
Connector: FireBeetle V2 series compatible
Operating Temperature: -40?~ 85?
Module Size: 25.4Ã—60mm/1Ã—2.36â€
Mount Hole Size: inner diameter of 2.0mm

DOCUMENTS

Product wiki

SHIPPING LIST

FireBeetle Board ESP32-E x1
18pin-2.54mm Pitch Pin x1
18pin-2.54mm Pitch Pin Female x1
14pin-2.54mm Pitch Pin x1
14pin-2.54mm Pitch Pin Female x1
