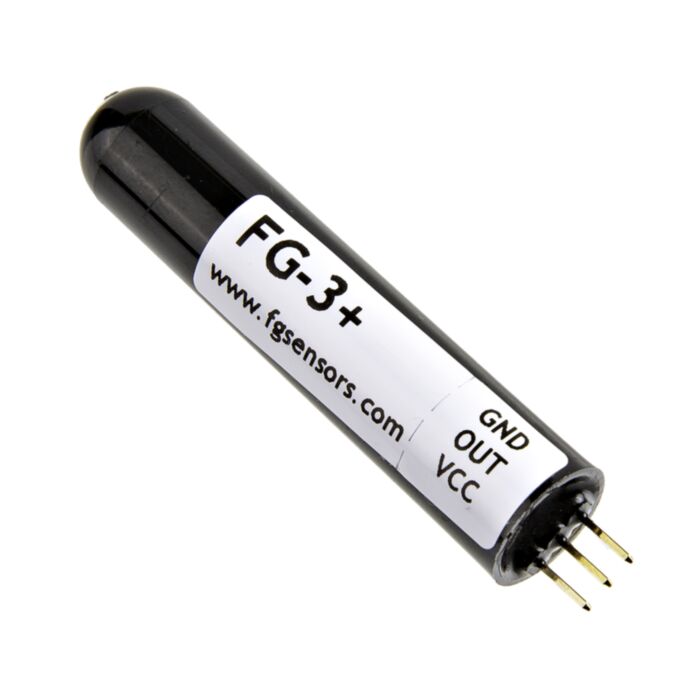

FGSensors FG-3+ Sensor

SKU: SEN-25531 Brand: Sparkfun
The FGM-X series of devices are very high sensitivity magnetic field sensors operating in the ±50 microtesla range ( ±0.5 oersted )...
$103.25 AUD, inc GST
$93.86 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 10 and Oct 14

Quantity Discounts:

  • 5+ $92.45 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The FGM-X series of devices are very high sensitivity magnetic field sensors operating in the ±50 microtesla range ( ±0.5 oersted). They are simple, essentially three terminal devices, operating from a single +5 volt supply, the connections being ground, +5v and output. The output is a robust 5 volt rectangular pulse whose period is directly proportional to the field strength, (giving a frequency which varies inversely with the field), making it very easy to interface to a computer or micro controller. The typical period swing for the full range of an FGM-3 is from 8.5 µs to 25µs (~120 KHz to ~50KHz), a clear indication of its high sensitivity.

Unlike Hall Effect field sensors, which are virtually unusable in this range because of their large temperature sensitivity, the FGM-series has a very low temperature coefficient. Since the lowest effective Nyquist sampling rate is ~50 KHz, appropriate filtering can provide an AC field bandwidth from DC to ~20kHz.

Features

  • Maximum Supply Voltage 7 volts
  • Recommended supply Voltage 5 volts ±0.5 volts
  • Typical Supply Current 12 mA
  • Operating Temperature Range 0 - 50 °C
  • Bandwidth: DC to 20 KHz Bandwidth
  • Output freq. range: 120 kHz to 50 kHz ( 8.5 milliseconds to 25 milliseconds)
