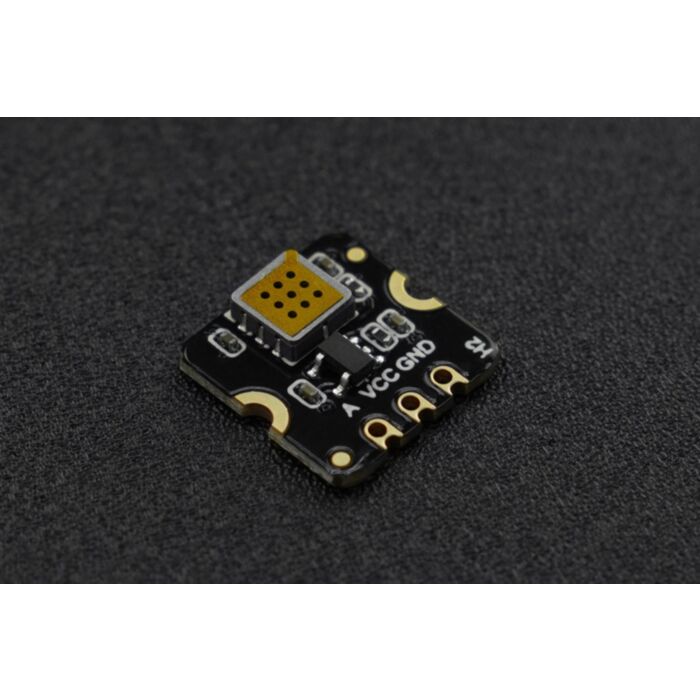

Fermion: MEMS Hydrogen H2 Gas Detection Sensor (Breakout, 0.1-1000ppm)

SKU: SEN0572 Brand: DFRobot

The Fermion: MEMS H2 Hydrogen Gas Detection Sensor (breakout) provides qualitative measurements of hydrogen gas concentrations, making it perfect for...

$27.05 AUD, inc GST

$24.59 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 20

Quantity Discounts:

10-25 $23.85 (exc GST)
25+ $23.36 (exc GST)

Fermion: MEMS H2 sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can measure the concentration of hydrogen gas qualitatively. It is suitable for the hydrogen leakage alarm and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.

Wiring Diagram of Fermion: MEMS H2 Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS H2 Sensor and Arduino UNO

Precautions for use

Kindly remove the protective film before usage.

To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

Prevent contamination from alkalis, alkali metal salts, and halogens.

Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

Avoid contact with water, condensation, and freezing.

Minimize excessive vibration, impact, and dropping.

Please refrain from employing this module in systems that involve personal safety concerns.

For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Features

Compact size, measuring only 13*13*2.5mm

Low power consumption, operating current <20mA

High sensitivity and rapid response recovery

Advanced MEMS technology

Applications

Air quality monitoring: measures the level of H2 and other pollutants in the ambient air.

Automotive emission control: monitors the H2 emission from fuel cell vehicles and adjusts the fuel cell operation to optimize the performance and efficiency.

Industrial safety: detects the leakage or exposure of H2 and other flammable gases in industrial processes or workplaces.

Specification

Gas detected: Hydrogen (H2)

Detection range: 0.1-1000ppm

Operating voltage: 3.3-5V

Operating current: <20mA

Output signal: Analog voltage

Sensitivity: R0(in air)/Rs(in 200ppm H2) = 5

Operating temperature: -10°C - 50°C

Operating humidity: 15-90%RH (non-condensing)

Lifespan: =5 years (in air)

Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1"

Projects

Project: Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.

Documents

Product wiki

Schematics & Dimension

Characteristic Parameter

Parts List

Fermion: MEMS H2 Sensor (breakout) × 1

2.54mm pitch header pin × 1
