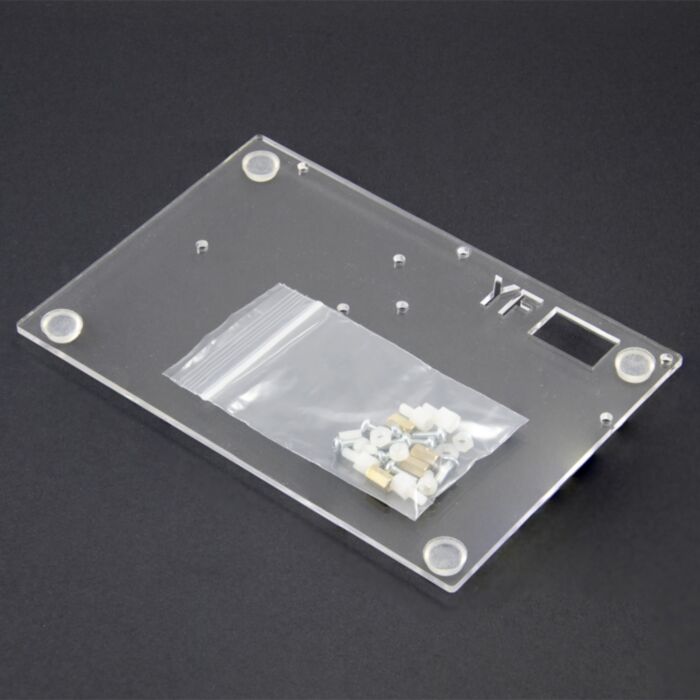

Experimenters Platform for Arduino Uno R3 Board (Large)

Retired Product

Replaced by: DWG0003

This product has been replaced by: DWG0003
This product is no longer available. This page is only for reference.

If you are new to the world of Arduino, or even a seasoned sketch writer then you'll likely be interested in a more secure method of building circuits/prototyping. This handy platform has pre-drilled mounting holes for the Arduino Uno R3 layout, a 16x2 LCD and a ZY-102 breadboard.

Features:

Thick acrylic base
Predrilled holes for the Arduino Uno R3 + 1602 LCD
4x screws for the Arduino (note, sometimes the top left screw shown in the image doesn’t sit straight. We recommend this screw be optional)
8x screws for the LCD (note, the top screws will have ample clearance as shown in the image)
4x spacers for the LCD
4x feet which prop the platform off the surface
Arduino / Breadboard / LCD are sold separately

A pro tip; you can use the LCD area for your own PCBs instead, enjoy! A not as pro tip; our ZY-102 boards are fitted with double-sided tape which is very useful for this platform.

Note: Fasteners may be plastic or metal depending on availability, we are unable to control which variant is sent.

Educators: We also sell a smaller version of this platform that doesn't have the LCD mount area. Please check our store for "Platform for Arduino" to find this variant.
