Expansion Shield X300 for Raspberry Pi B+ and 2

SKU: DFR0358 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

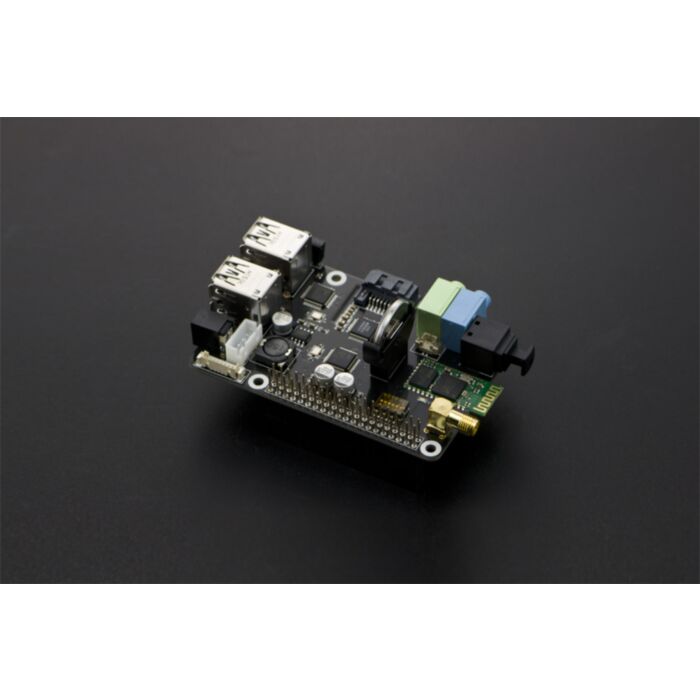

Expansion Shield X300 is a one of the most cost-effective shield which could apply to Raspberry Pi Model B+ and Raspberry Pi 2 Model B. It integrates a lot of very useful functions such as RTC real time clock; audio input and output; USB hub; Bluletooth, WIFI; SATA interface. With this shield, you can build Raspberry Pi projects more easily and save both time and cost.

Compare with Expansion Shield X200. It adds some new features like SATA and BLuetooth, but it cancels HDMI and VGA video port. It is more suitable for project.

FEATURES

Input Voltage: 6V to 18Vdc converted to 5V, 4A via step-down DC/DC converter to power the Raspberry Pi
SATA: Allows you to connect SATA devices to your Raspberry Pi
Audio:
1> 3.5mm MIC in jack
2> 3.5mm stereo audio jack
3> SPDIF output
4> Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
Wireless:
1> WiFi (IEEE 802.11b/g/n) with external antenna
2> IR sensor (38KHz)
3> Bluetooth serial communication
USB Storage: Self-powered USB hub with 3 ports
Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
Misc:
1> Power output socket
2> Camera flex slot so camera can still be used with the expansion board attached
3> DIP switch to remove connection from RPi’s pin header
4> Directly connected on top of the Raspberry Pi using the board GPIO header pins
5> No wiring nor soldering is required
6> Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
7> Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B Dimensions: 85 x 56mm (Same size as Raspberry Pi)
Note: When you power Raspberry Pi with the shield power resource, please don't power it again via the Micro-USB port, it will damage the board!

Documents

Driver Download and User Manual

Parts List

X300 Raspberry Pi expansion board x1
USB adapter x1
2.4GHz WIFI antenna x1
nylon spacers (M3 x 20mm) x4
nylon screws (M3 x 6mm) x8
