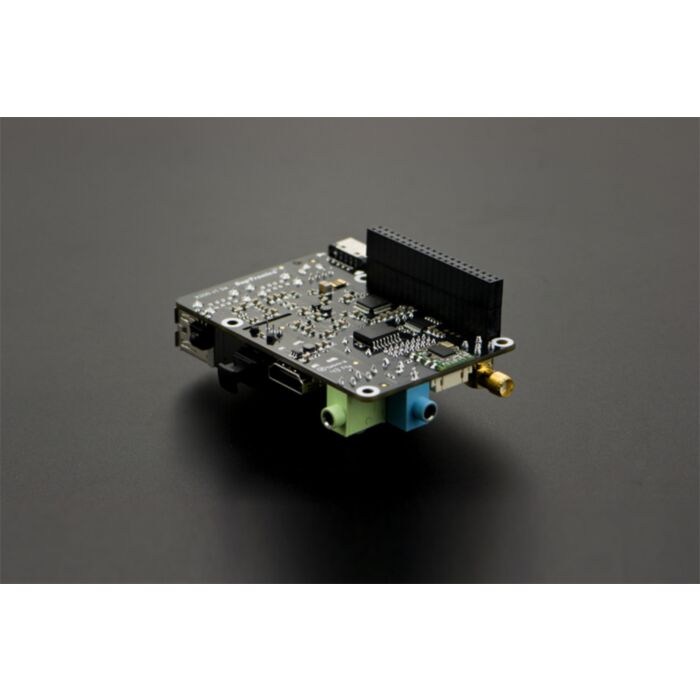

Expansion Shield X200 for Raspberry Pi B and 2

SKU: DFR0357

$81.57 AUD, inc GST
$74.15 AUD, exc GST

More Views

Expansion Shield X200 for Raspberry Pi B and 2
81.57 AUD

SKU: DFR0357

$81.57 AUD, inc GST
$74.15 AUD, exc GST
In stock, with a short lead time. 9 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 29th of Aug with Express Post within Australia.

Introduction

The Expansion Shield X200 is a most cost-effective shield which could apply to Raspberry Pi Model B+ and Raspberry Pi 2 Model B. It integrates a lot of very useful functions such as RTC real time clock; audio input and output; VGA output; USB hub; WIFI; 8-way GPIO. With this shield, you can build Raspberry Pi projects more easily and save both time and cost.



Specification

  • Input Voltage: 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
  • VGA output: HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
  • Audio: 3.5mm MIC in jack
  •        3.5mm stereo audio jack
  •        SPDIF output
  •        Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
  • Wireless: WiFi (IEEE 802.11b/g/n) with external antenna
  •           IR sensor (38KHz)
  • USB Storage: Self-powered USB hub with 3 ports
  • Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
  • GPIO Control: 8-channel Darlington driver chip  (ULN2803) allowing to control electronic circuits which require more current
  • Misc: Power output socket
  •       Camera flex slot so camera can still be used with the expansion  board attached
  •       DIP switch to remove connection from RPi’s pin header
  •       Directly connected on top of the Raspberry Pi using the board GPIO header pins
  •       No wiring nor soldering is required
  •       Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
  •       Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B NEW!
  • Dimensions: 85 x 56mm (Same size as Raspberry Pi)
Note: When you power Raspberry Pi with the shield power resource, please don't power it again via the Micro-USB port, it will damage the board!

Parts List

  • X200 Raspberry Pi expansion board x1
  • HDMI adapter x1
  • USB adapter x1
  • 2.4GHz WIFI antenna x1
  • nylon spacers (M3 x 20mm) x4
  • nylon screws  (M3 x 6mm) x8
Documentation and Resources:
