ESP32-H2 Microcontroller DevKit (With Presoldered Headers)

SKU: WS-26508 Brand: Waveshare
ESP32-H2 Microcontroller, 96MHz Processor, ESP32-H2-MINI-1-N4 Module, Built in 4MB Flash, supports BLE/Zigbee/Thread wireless communication...
$11.45 AUD, inc GST
$10.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $9.99 (exc GST)
  • 25+ $9.68 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

16 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Board specifications

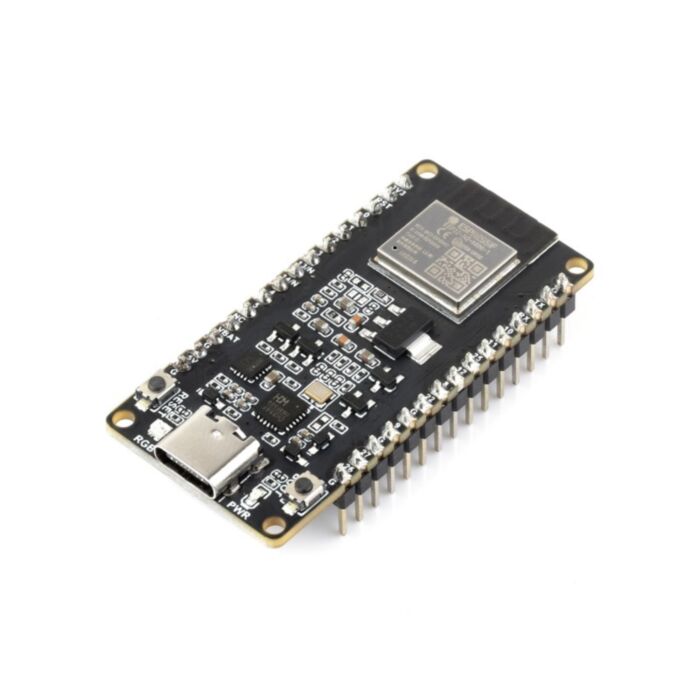

The ESP32-H2-DEV-KIT-N4 is an entry-level RISC-V microcontroller development board integrating Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). it is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.Adopts ESP32-H2-MINI-1-N4 module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-H2-DevKitM-1 development board, more convenient to use and expand a variety of peripheral modules.Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.

Key features include:

  • Adopts ESP32-H2-MINI-1-N4 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash

  • Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance

  • Type-C connector, easier to use

  • Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

  • Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offers strong compatibility and expandability

  • Castellated module allows soldering directly to carrier boards

Supports ESP-IDF, Arduino

Comprehensive SDK, dev resources, and tutorials to help you easily get started

BLE 5 support

supports Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Function Block Diagram

Pinout Definition

Compatible with the pinout of ESP32-H2-DevKitM-1 development board

Onboard Resources

Dimensions

Resources & Services

www.waveshare.com/wiki/ESP32-H2-DEV-KIT-N4

What's Included

ESP32-H2-DEV-KIT-N4-M

  1. ESP32-H2-DEV-KIT-N4 with pre-soldered header x1

ESP32-H2-DEV-KIT-N4-M
