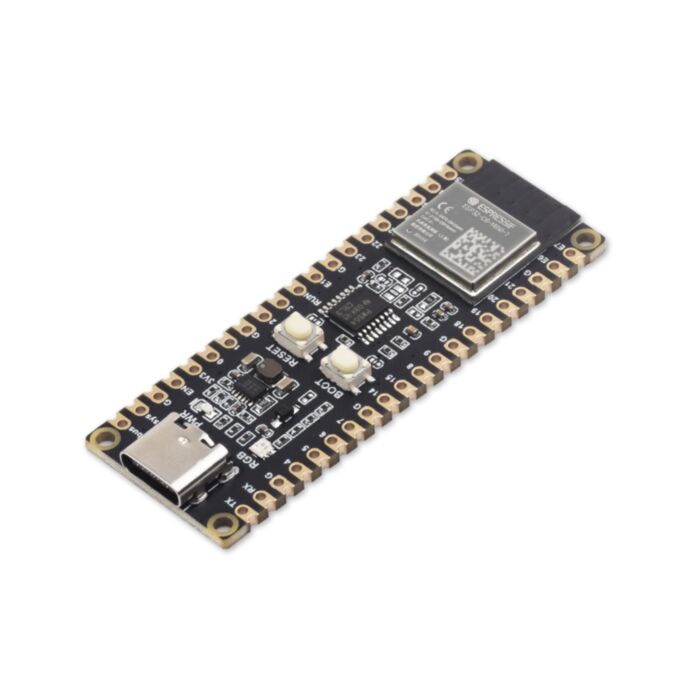

ESP32-C6 Microcontroller, WiFi 6 Development Board, 160MHz Single-core Processor, ESP32-C6-MINI-1 Module
Retired Product
Replaced by: ESP32-C6This product is no longer available. This page is only for reference.
Details
WiFi 6 Development Board
Supports development environments such as ESP-IDF, Arduino, etc
160MHz RISC-V 32-bit Single-core Processor
The ESP32-C6-Pico is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compatible in size and interface with most of the Raspberry Pi Pico HATs. Easy to expand, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-C6-MINI-1 as the main chip, which is equipped with a RISC-V 32-bit single-core processor with 160MHz running frequency, built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.
You can choose ESP-IDF, Arduino or other development environments in software so that you can easily and quickly get started and apply it to the product.
Key features include:
- Adopts ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz
- Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
- 20 × multi-function GPIO pins and 7 × expanded IO pins
- Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly
- Castellated module allows soldering directly to carrier boards
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
- Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
Comprehensive SDK, dev resources, tutorials to help you easily get started
Powered by RISC-V 32-bit single-core processor with frequency up to 160 MHz
Powerful AI Computing Capability & Reliable security features
ESP32-C6 integrates 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
and 7 × expanded IO pins
configurable pin function, allows flexible development and integration
- ESP32-C6-MINI-1
RISC-V 32-bit single-core processor - BOOT button
Press it when resetting to enter download mode - RESET button
- TCA9554PWR
GPIO expander, extending 7 × IO pins such as E1~E7
- MP28164
High efficiency DC-DC buck-boost chip - RGB LED
- Power indicator
- USB Type-C port
for programme downloading and serial debugging
1.3" OLED
1.44" LCD
8-segment LED
2.66" e-paper
RS232 Module
NB-IoT Module
* for more compatible modules, please check this link
Weight: 0.01 kg
Quick Overview
ESP32-C6-Pico
- ESP32-C6-Pico x1
- 40PIN male pinheader (black) x1
ESP32-C6-Pico-M
- ESP32-C6-Pico with pre-soldered header x1
