PlanetX OLED

SKU: EF05016 Brand: Elecfreaks

0.96″ OLED display offers crisp 128×64 pixel output for real-time sensor readings.

$16.69 AUD, inc GST

$15.17 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 10 and Jul 14

Quantity Discounts:

10+ $14.56 (exc GST)
25+ $14.11 (exc GST)

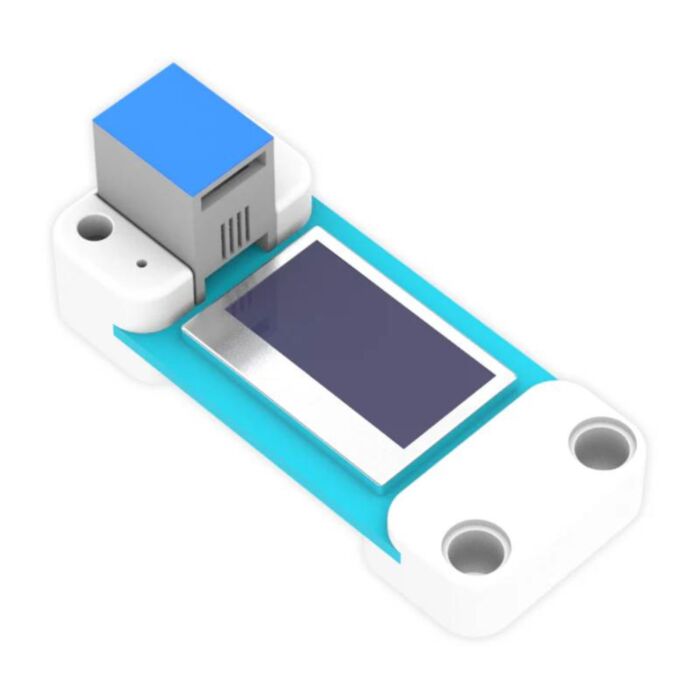

The ELECFREAKS PlanetX OLED is a compact 0.96-inch OLED display module with a resolution of 128×64 pixels, designed for clear visual output in various electronic projects. Ideal for displaying temperature, humidity, date, and other vital information, it adds practical functionality to sensor-based applications.

Its slim profile, high brightness, and high contrast make it suitable for educational use, prototyping, and maker projects. The PlanetX OLED offers a straightforward RJ11 4P4C connection, simplifying hardware integration, especially when paired with complementary expansions like the Nezha board and RJ11 cables, enabling seamless sensor and display communication.

Technical Specifications

Connection: RJ11 4P4C cable
Power Supply: 3.3V
Input Type: Digital input
Resolution: 128 × 64 pixels
Screen Size: 0.96 inch OLED display

How to Use/Installation

Connect the PlanetX OLED display via the RJ11 cable to a compatible breakout or expansion board, such as the Nezha expansion board.
Ensure the power supply of 3.3V is stable and correctly connected.
Use appropriate code libraries and sample projects, available on the ELECFREAKS wiki and learning platform, to control and display sensor data on the OLED.
Incorporate with various sensors in the PlanetX sensor ecosystem for real-time display of measurements like temperature and humidity.
Refer to the colour-coded port recognition system for simple, error-free connections.

Compatibility

Compatible Component	Details
PlanetX Sensors	Works seamlessly with PlanetX sensor modules using RJ11 cables
Nezha Expansion Board	Required for connecting the OLED module via RJ11
RJ11 4P4C Cable	Facilitates hardware connection to the breakout board
Brick Plugs	Compatible with distinctive brick-style plugs for easy project creation

Additional Resources

What’s Included

1 × PlanetX OLED Display Module

This product is listed in:

Displays & Screens>Graphic
