DSO Nano V3 - Pocket-Sized Digital Oscilloscope

SKU: TOL-11702

$170.53 AUD, inc GST
$155.03 AUD, exc GST

More Views

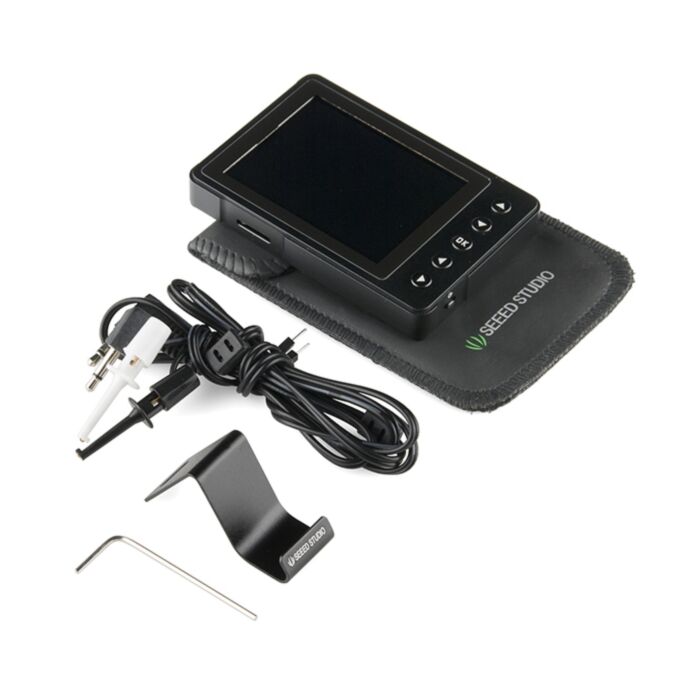

DSO Nano V3 - Pocket-Sized Digital Oscilloscope
170.53 AUD

SKU: TOL-11702

$170.53 AUD, inc GST
$155.03 AUD, exc GST
Shipping Offer
OR
Brand: Sparkfun

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

An oscilloscope is an awesome tool to have around the shop. Unfortunately, most scopes take up quite a bit of bench space and they’re not very portable. The DSO Nano v3, on the other hand, is a 32bit digital storage oscilloscope that fits in the palm of your hand! Based on ARM -M3, it’s equipped with a 320x240 color display, internal 2MB storage, USB port and recharging function. It’s compact, simple to operate and perfect for everything from the test bench to field work.

The version 3 of DSO Nano differs from version 2 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and rugged.

Dimensions: 91 x 62 x 13mm

Features * Portable and lightweight * Color display * Waveform storage and playback * 6 triggering modes * 200Khz Analog Bandwidth * Complete measurement markers and signal characteristics * Built-in Signal Generator * Analog bandwidth: 0 - 200KHz * Max sample rate: 1Msps 12Bits * Sample memory depth: 4096 Point * Input impedance: >500KΩ * Max input voltage: 80Vpp (by ×1 probe) * Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator. * Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run. * Signal Generator: 10Hz~1MHz square wave * Waveform storage: Internal 2MB Storage * PC connection via USB

Documents:

Replaces:TOL-10244
