DS213 Pocket Oscilloscope

SKU: CE07864 Brand: Miniware
A 15MHz Pocket Oscilloscope for all of your measuring needs!
$369.95 AUD, inc GST
$336.32 AUD, exc GST

Quantity Discounts:

  • 3-6 $322.86 (exc GST)
  • 6+ $312.77 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

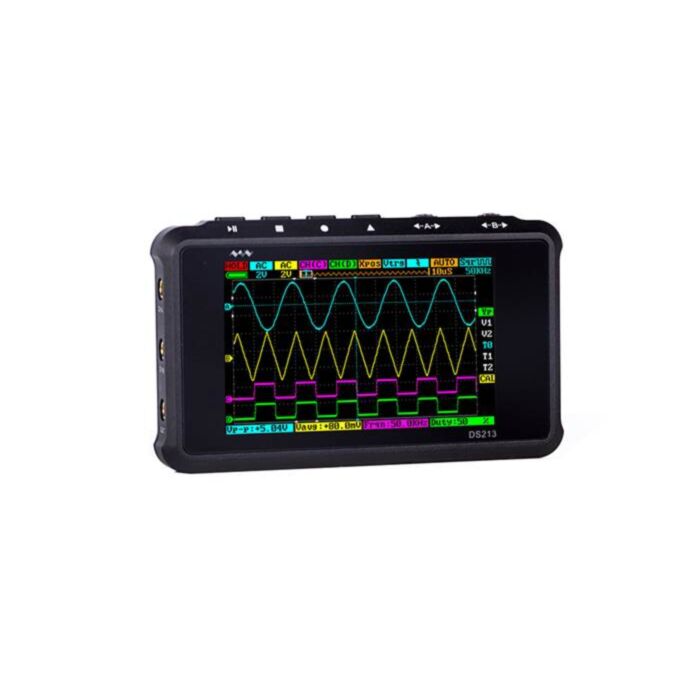

The DS213 is a pocket-size digital storage oscilloscope that is small enough to take it anywhere and fulfills basic electronic engineering requirements;

  • DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering tasks and is based on an ARM Cortex M3 core
  • DS213 uses FPGA to manage external ADC’s control and data cache modes
  • It provides 4 application partitions for loading and upgrading up to 4 different application firmware
  • Inbuilt 8MB U-disk storage for waveform data and images
  • Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, which can be exactly like a multi-meter, probe where to measure, without considering the problem of grounding isolation
  • The oscilloscope code application layer is open-source
  • Users can develop firmware according to different needs
  • Can meet the demands in many fields, such as school experiments, electronic repairing, and electrical engineering

Specifications

Onboard interfaces Buttons and Encoder MCU STM32F103VE
Channels 2 Analog channels + 2 Digital channels ADC HWD9288
Horizontal Sensitivity 100nS/Div~1S/Div. (1-2-5 sequence step) Analog Bandwidth 15MHz
Vertical Sensitivity

10mV-10V/div(1-2-5 STEP)(with X1 Probe Analyzer)

100mV-100V/div(1-2-5 STEP)(with X10 Probe Analyzer)

Max Sample Rate 100MSa/s
Trigger Mode

Ascend / Descend Edge Trigger Mode,

Positive / Negative Pulse Trigger, Logic Trigger

Max Sample Memory Depth 4K
Math Waveforms INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD Analog Input Impedance 1MΩ
Inbuilt Signal Generator Sine / Square / Triangle / Sawtooth Wave Coupling DC / AC
Synchronous Mode Auto, Normal, Single, Slow AUTO_FIT NONE
Auto Measurement

Signal Sequence / Cycle / Duty Ratio,

Peak Voltage / Virtual Value / Max Value / Min Value / Average

APP Installed 2
Open Source Application Layer
Data Transfer Interface Micro USB Port Screen Size 3.0''
Storage 8MB USB Flash Disk Memory Screen Resolution 400 x 240
Net Weight 129g (with Battery) Battery 1000mAh
Certification Compliant with EU Certification CE FCC Dimensions 99.5mm x 58.5mm x 13.5mm

Package contents

DS213 Mini Oscilloscope x 1

Probe(x1x10) x 2

USB Cable x 1

User Manual x 1
