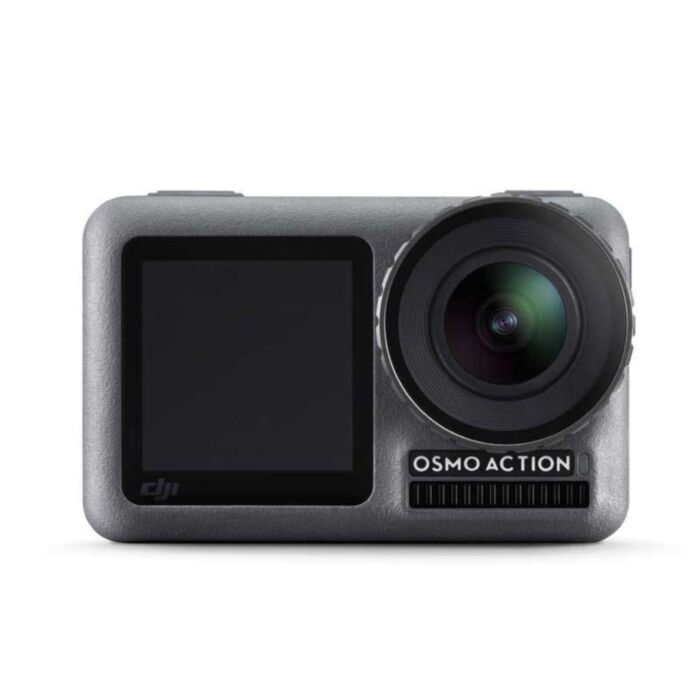

DJI Osmo Action Camera

Features

• Live the Action: Whether you want to record your world from behind a lens or be the star of the show, Osmo Action's dual screens allow you to capture it all with the touch of a button. A vivid front screen lets you frame yourself effortlessly in any setting, while the back screen delivers a crystal-clear, hyper-responsive display. This durable, versatile action camera is jam-packed with advanced technology that lets you spend less time worrying about equipment and more time living in the action.
• More Dynamic Detail with HDR Video: Dramatically enhance the dynamic range of your footage when recording with HDR video. This shooting mode delivers natural transitions between light and dark areas, capturing rich details that are often lost in environments with complex lighting.
• Take your best shot: Osmo Action packs a high-quality punch with 4K/60fps at 100Mbps video. This ensures your footage always matches the intensity of the moment while maintaining sharp details.
• RockSteady: After years of providing advanced, reliable stabilization technology to filmmakers around the globe, DJI has gone one step further. RockSteady combines EIS with complex algorithms, delivering stable, shake-free footage no matter how heavy the action gets.
• 8x Slow Motion: Capture every epic move with jaw-dropping clarity and detail when you use 8x slow motion with 1080p resolution and 240fps
• Custom Exposure settings: Shoot for the stars with manual and semi-automatic settings that allow up to 120seconds of exposure, perfect for capturing the night sky.
• 11m Waterproof: Sporting a watertight seal and a hydrophobic coating on the back touchscreen, Osmo Action is waterproof at depths of up to 11meters, making it the perfect underwater companion.
• Timelapse: Condense time and movement for stunning, easy-to-achieve results.
• Time shooting Mode: Set up times RAW shots, perfect for post-processing and additional control.
• 3 layers safe from the elements: The lens features three aspherical layers that effectively reduce glare and distortion, delivering a crystal-clear image even in direct sunlight. A protective, anti-fingerprint coating on the lens filter cap repels oil, water, dirt, and other small particles, enabling you to continue filming, even when conditions and terrain get tough.
• Life doesn't wait, neither should you: Action OS is an extremely fast interactive system that combines an efficient, streamlined UI with three accessible buttons to provide rapid, flexible operation. Powering on, recording, and setting modes can all be done in the blink of an eye.
• Custom Mode: For simplified use and upgraded efficiency, custom mode lets you store, list and select frequency used shooting modes and exposure settings.
• -10°C Temperature Resistant: Versatile batteries perform well even in extremely cold environments with temperatures as low as -10°C
• Voice Control: Five voice commands make essential functions like filming, capturing photos, and powering down the device effortlessly.
• SnapShot: SnapShot means you'll never miss a moment of the action. Press the shutter button to power on and begin recording in under two seconds. Easily enter preset shooting modes by pressing the shutter button once when the camera has entered sleep mode or is powered off.
• QS Button: The Quick Switch button ensures modes and settings are easily and quickly accessible. It has multiple capabilities including options that let you flip between the front and back screen.
• 16% Efficient cooling system: Featuring a 16% increase in efficiency, this carefully designed heat-transfer system allows generated heat to be quickly dissipated, making it possible to shoot consistently for long periods of time without worry.

Technical Specifications

Dimensions
65×42×35 mm

Weight
124 g

Sensor
1/2.3" CMOS

Effective pixels
12M

Lens FOV
145° f/2.8

ISO Range Photo
100-3200

Video
100-3200

Electronic Shutter Speed
120-1/8000s

Max Image Size
4000×3000 pixels

Still Photography Modes
1. Single
2. Countdown: 1/2/3/5/10s
3. Timed: 0.5/1/2/3/4/5/8/10/15/20/35/45/65/125s
4. Burst: 3/5/7s
5. AEB: 1/3EV×3, 2/3EV×3, 1EV×3, 1/3EV×5, 2/3EV×5, 1EV5

Video
4K (16:9) – 60, 50, 48, 30, 25, 24fps
4K (4:3) – 30, 25, 24fps
2.7K (4:3) – 30, 25, 24fps
2.7K (16:9) – 60, 50, 48, 30, 25, 24fps
1080p – 240, 200, 120, 100, 60, 50, 48, 30, 25, 24fps
720p – 240, 200fps

Slow Motion
720p 120, 240fps. Speed: 4/8
1080p 120, 240fps. Speed: 4/8

HDR Video
4K – 30, 25, 24fps
2.7K – 30, 25, 24fps
1080p – 30, 25, 24fps

Timelapse
4K– 0.5, 1, 2, 3, 4, 5, 8, 9, 10, 13, 15, 20, 30s
2.7K– 0.5, 1, 2, 3, 4, 5, 8, 9, 10, 13, 15, 20, 30s
1080p– 0.5, 1, 2, 3, 4, 5, 8, 9, 10, 13, 15, 20, 30s

Max Video Bitrate
100 Mbps

Supported File Formats
FAT32 (≤32 GB); exFAT (≥64 GB)

Photo Formats
JPEG/JPEG+DNG

Video Formats
MOV, MP4 (H.264)

Supported SD Cards
microSD; Max. 256 GB

Audio Output
48 KHz; AAC

Wi-Fi Operation Frequency Range
FCC/CE/SRRC: 2.400-2.4835 GHz, 5.725-5.850 GHz

MIC
2.400-2.4835 GHz

Wi-Fi Protocol
802.11a/b/g/n/ac

Bluetooth Operation Frequency Range
2.400-2.4835 GHz

Bluetooth Protocol
BLE 4.2

Front Screen
1.4 inches, 300 ppi, 750 ±50 cd/m²

Back Screen
2.25 inches, 640×360, 325 ppi, 750 ±50 cd/m²

Battery Type
LiPo

Capacity
1300 mAh

Energy
5.005 Wh

Voltage
3.85 V

Operating Temperature
-10 to 40°C (14 to 104°F)

Operating Time
A fully charged battery can support video recording at 1080P/30fps for up to 135 minutes (with RockSteady turned off and screen sleep enabled after 1 min) and 4K/60fps for up to 63 minutes (with RockSteady turned on and screen sleep enabled after 1 min).

Charging Time
90 mins
