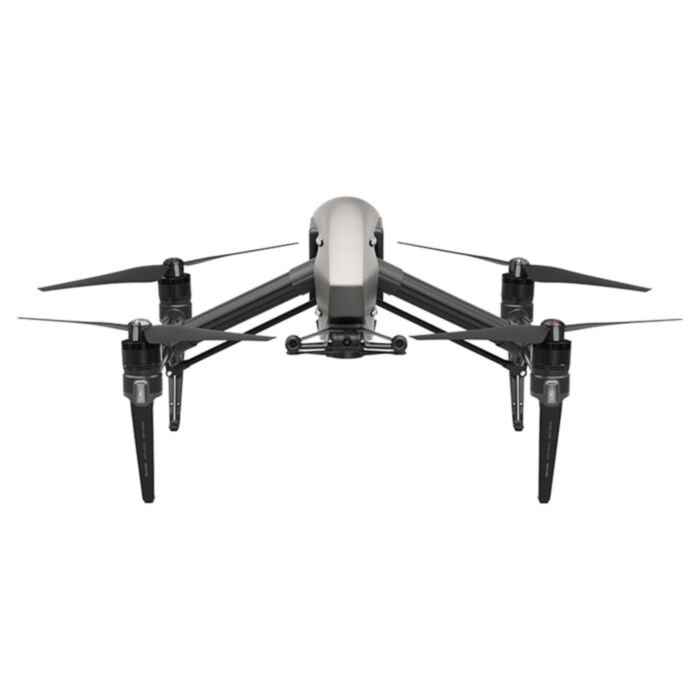

DJI Inspire 2 RAW (LC3) with Cendence Remote Controller & License (without camera/ gimbal)

SKU: CE06124 Brand: DJI

Retired Product

Replaced by: CE06110
This product has been replaced by: CE06110
This product is no longer available. This page is only for reference.

Power Beyond Imagination

The Inspire 2 takes everything that was good about the Inspire 1 and improves it. An all-new image processing system records at up to 5.2K in Cinema DNG RAW, Apple ProRes and more.

Features

Strong Structure
Magnesium aluminium composite shell and transforming design, carbon fibre arms.

Intuitive Configuration
Vision sensing, 2-axis FPV camera, range of supported cameras

Improved Propulsion
58mph (94kph) max speed, 2kg thrust per rotor, 15inch props, maximum 27min flight time (with X4S)

Long Battery Life
Dual battery, self-heating, battery redundancy, 98Wh

High-Quality Image Processing
Image processing and storage: [email protected] RAW video recording, CineCore 2.0, integrated DJI CINESSD

Video Formats
CinemaDNG and Apple ProRes 5,2K video support, H2.65 and H.264 video codec support, 4k video at 100mbps.
Recorded video can be stored simultaneously on the DJI CINESSD and a Micro-SD card

Remote Controller
Signal frequency switching between 2.4Ghz and 5.8Ghz. Lightbridge technology
Controllable range: 7km
Master-slave mode: Multiple slave controller supported

Sense and Avoid

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30meters ahead, allowing for protected flight at up to 54kph at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 5m above, adding protection when flying in enclosed spaces. Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.

Spotlight Pro

Spotlight is a powerful tracking moe that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

Intelligent Flight Modes

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest and Waypoint modes, making complex shots simple and repeatable. Also available are QuickSpin, Tapfly and Active Track, to simplify challenging shots.

Tapfly
The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.

ActiveTrack
The ActiveTrack Mode allows the Inspire 2 to to recognise a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

Smart return to home
Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it s able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing its connection.

Technical Specifications

Aircraft

Model
T650A

Weight
7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera)

Max Takeoff Weight
9.37lbs (4250 g)

GPS Hovering Accuracy
Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)

Max Angular Velocity
Pitch: 300°/s
Yaw: 150°/s

Max Tilt Angle
P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°

Max Ascent Speed
P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s)

Max Descent Speed
Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s)

Max Takeoff Sea Level
1.55 mi (2500 m)
3.1 mi (5000 m with specially-designed propeller)

Max Wind Speed Resistance
10 m/s

Max Flight Time
Approx. 27min (with Zenmuse X4S)
Approx. 23min (with Zenmuse X7)
(Hovering at sea level with no wind.)

Motor Model
DJI 3512

Propeller Model
DJI 1550T

Indoor Hovering
Enabled by default

Operating Temperature
-20° to 40° C

Diagonal Distance(propeller excluded)
605 mm, Landing Mode

Max Speed
58 mph or 94 kph(Sport mode)

Remote Controller

Model
GL6D10A

Operating Frequency
2.400-2.483 GHz
5.725-5.850 GHz

Max Transmitting Distance(unobstructed, free of interference)
2.4 GHz:
FCC: 4.3 miles (7 km);
CE: 2.2 miles (3.5 km);
SRRC: 2.5 miles (4 km);
MIC: 2.5 miles (4 km);
5.8 GHz:
FCC: 4.3 miles (7 km);
CE: 1.2 miles (2 km);
SRRC: 3.1 miles (5 km);
MIC: - ;

EIRP
2.4 GHz:
FCC: 26 dBm;
CE: 17 dBm;
SRRC: 20 dBm;
MIC: 17dBm;
5.8 GHz:
FCC: 28 dBm;
CE:14 dBm;
SRRC: 20 dBm;
MIC: - ;
Video Output Ports
USB, HDMI

Power Supply
Built-in battery

Charging DJI
charger

Dual User Capability
Host-and-Slave connection

Mobile Device Holder
Tablet or Smart Phone

Max Mobile Device Width
170 mm

Output Power
9 W (Without supplying power to smart device)

Operating Temperature
-20° to 40° C

Storage Temperature Less than 3 months
-20° to 45° C
More than 3 months: 22° to 28° C

Charging Temperature
0° to 40° C

Battery
6000mAh 2S LiPo

USB Supply Power
iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

Battery (Standard)

Name
Intelligent Flight Battery

Model
TB50

Capacity
4280 mAh

Voltage
22.8 V

Battery Typo
LiPo 6S

Energy
97.58 Wh

Net Weight
515 g

Charging Temperature
5° to 40° C

Operating Temperature
-20° to 40° C

Max Charging Power
180 W

Storage Temperature Less than 3 months:
-20° to 45° C
More than 3 months: 22° to 28° C

Downward Vision System

Velocity Range
<10 m/s at height of 2 m

Altitude Range
<10 m

Operating Range
<10 m

Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)

Ultrasonic Sensor Operating Range
0.33-16.4 feet (10-500 cm)

Ultrasonic Sensor Operating Environment
Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Upward Infrared Sensor

Obstacle Sensing Range
0-5 m

FOV
±5°

Operating Environment
Large-size non-reflective obstacles

Gimbal

Model
ZENMUSE X7(optional)
ZENMUSE X5S(optional)
ZENMUSE X4S(optional)

Angular Vibration Range
±0.01°

Controllable Range
Pitch: -130° to+40°
Roll: ±20°
Pan: ±320°

Max Controllable Speed
Pitch: 180°/s
Roll: 180°/s
Pan: 270°/s

Interface Type
Detachable

Mechanical Range
Pitch: -140° to+50°
Roll: -50° to+90°
Pan: ±330°

Charger

Model
IN2C180

Voltage
26.1 V

Rated Power
180 W

Charging Hub

Model
IN2CH

Input Voltage
26.1 V

Input Current
6.9 A

Forward Vision System

Obstacle Sensing Range
0.7-30 m

FOV
Horizontal: 60°; Vertical: 54°

Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)

APP

Name
DJI GO 4
