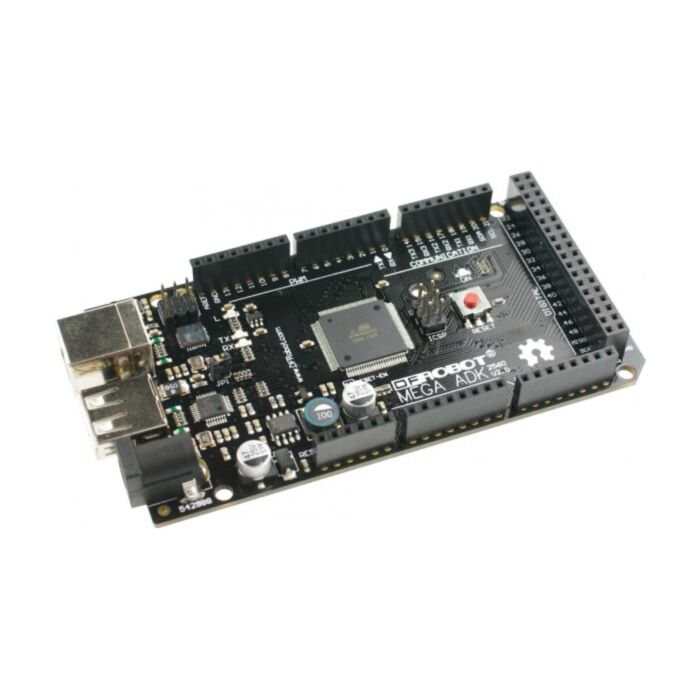

DFRduino MEGA ADK (Arduino Compatible)

SKU: DFR0156 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

The DFRduino Mega ADK is a microcontroller board based on the ATmega2560, which is fully compatible with Google's ADK and it includes all the basics you need to start building your own Android accessories.

It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

Similar to the Mega 2560 and Uno, it features an Atmega8U2 programmed as a USB-to-serial converter.

The Android 3.1 platform (also backported to Android 2.3.4) introduces Android Open Accessory support, which allows external USB hardware (an Android USB accessory) to interact with an Android-powered device in a special "accessory" mode. When an Android-powered device is in accessory mode, the connected accessory acts as the USB host (powers the bus and enumerates devices) and the Android-powered device acts as the USB device.

Applications

Develop accessories for Android (v2.3.4 and above) devices using ADK.

For Android devices not supporting ADK, use MicroBridge to develop accessories.

Make Android devices interact with the physical world as an Arduino compatible platform with 256K Flash.

On board USB host makes it easy to interact with USB devices like pen drivers, keyboard, mouse, Bluetooth dongles, etc...

Specifications

Microcontroller: ATmega2560
Operating Voltage: 5V
Max output current: 3A
Input Voltage (recommended): 6-23V
Digital I/O Pins: 54 (of which 14 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed :16 MHz

Documents

Shipping List

DFRduino Mega ADK(1 unit)
